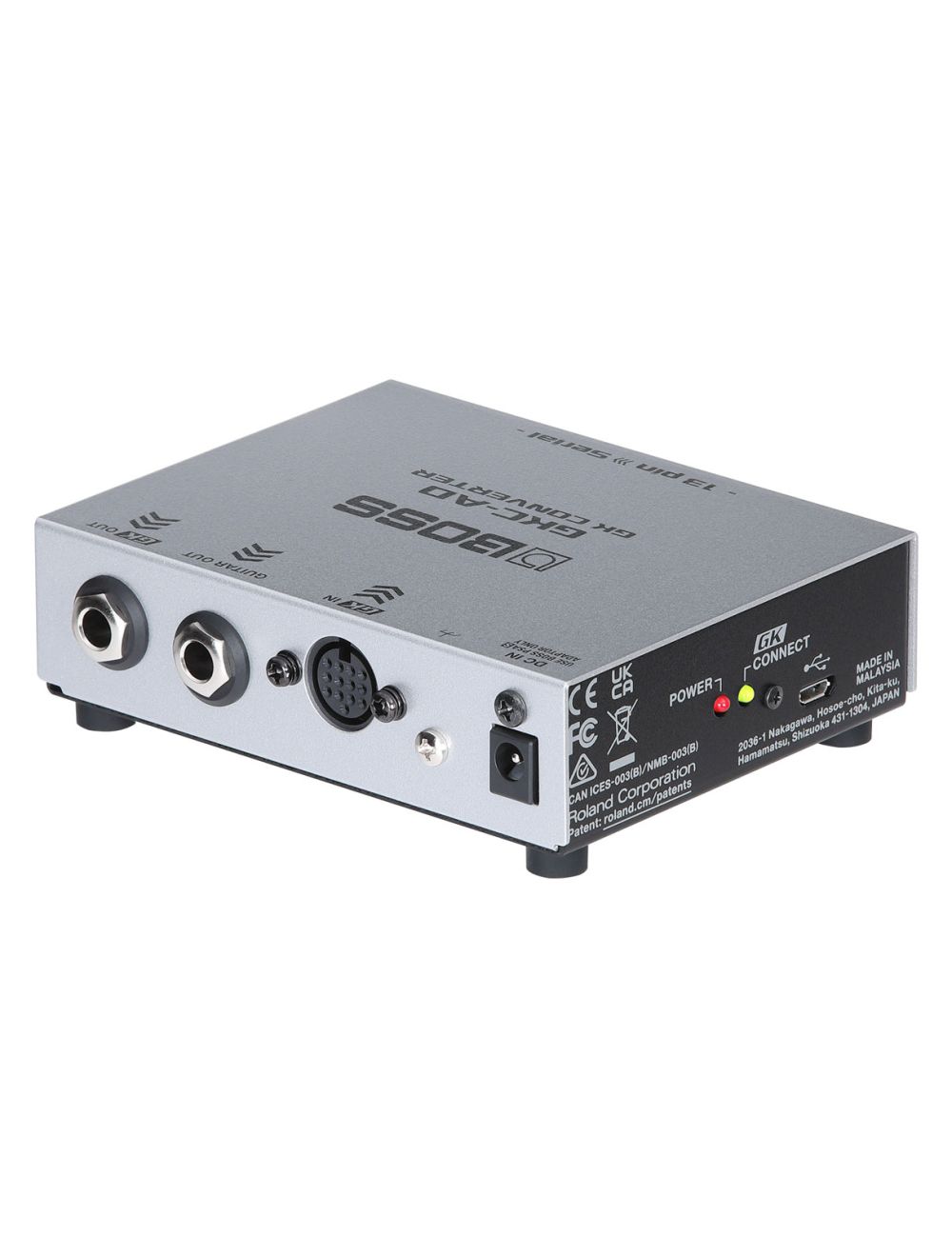

Boss GKC-AD GK Analog to Digital Converter

Drive the Next-Generation Serial GK Interface from a Roland GK-3 or GK-3B Divided Pickup

The latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-AD GK Converter allows you to drive the Serial GK input on the GM-800 Guitar Synthesizer from a Roland GK-3 or GK-3B Divided Pickup or an instrument equipped with a 13-pin GK output.

Converts analog 13-pin GK pickup systems to the newly developed Serial GK digital interface
13-pin GK input and Serial GK output
Instrument output for passing normal guitar/bass pickup sounds embedded in the 13-pin connection
Compact and rugged metal design

Connector

GK IN connector: 13 pins DIN type
GK OUT jack: 1/4-inch TRS phone type (for BGK cable only)
Guitar Out jack: 1/4-inch phone type
DC IN jack
USB port : USB Micro-B (program update only)
Nominal Input Level : Guitar IN: -10 dBu
Recommended Load Impedance : Guitar Out: 10 k ohms or greater

Indicators

Power indicator
Gk Connect indicator
Current Draw : 240 mA
Power Supply : AC adaptor

Accessories

AC adaptor
Owner’s Manual
Leaflet “Using The Unit Safely“
Options (sold separately) : Serial GK cable : BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)
Width : 115mm 4-17/32 inches
Depth : 92mm 3-5/8 inches
Height : 36mm 1-7/16 inches

SKU	BOS-GKCAD
Brand	Boss
Weight	1.500000
