BluGuitar Looper Kit Expansion for Remote1

Looperkit

MIDI Out - Pedal-Switcher

REMOTE1 is the first amp footcontroler that can act simultaneously as a pedal switcher. To utilize this function, the BluGuitar Looperkit must be installed in the REMOTE1. This saves space on the pedalboard and allows for easier operation. The Looperkit has four True-Bypass-Relay-Loops you can add your effect pedals to. When the Looperkit is installed, you can determine which of the four loops is active while programming your sound presets, and store the information in the preset.

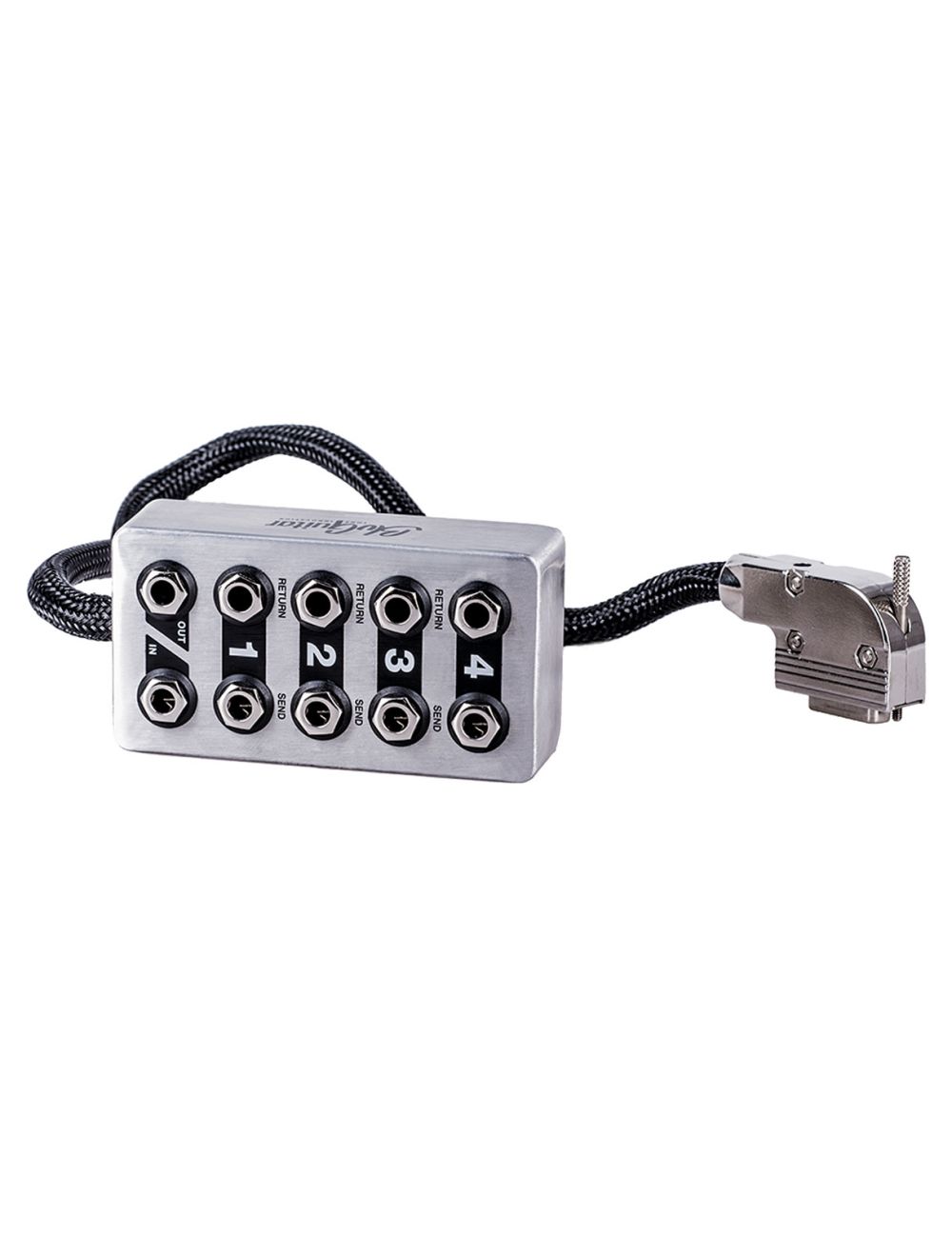

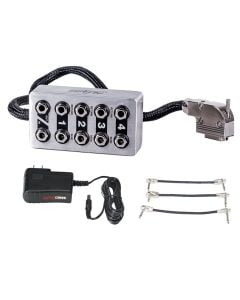

The Looperkit consists of an installation kit that has to be installed in the REMOTE1, and a Breakout-Box. The effect pedals that are to be integrated into the set-up are connected to the Breakout-Box with short patch cables. It has one input, one output and 4 of each send and return jacks for the 4 loops.
