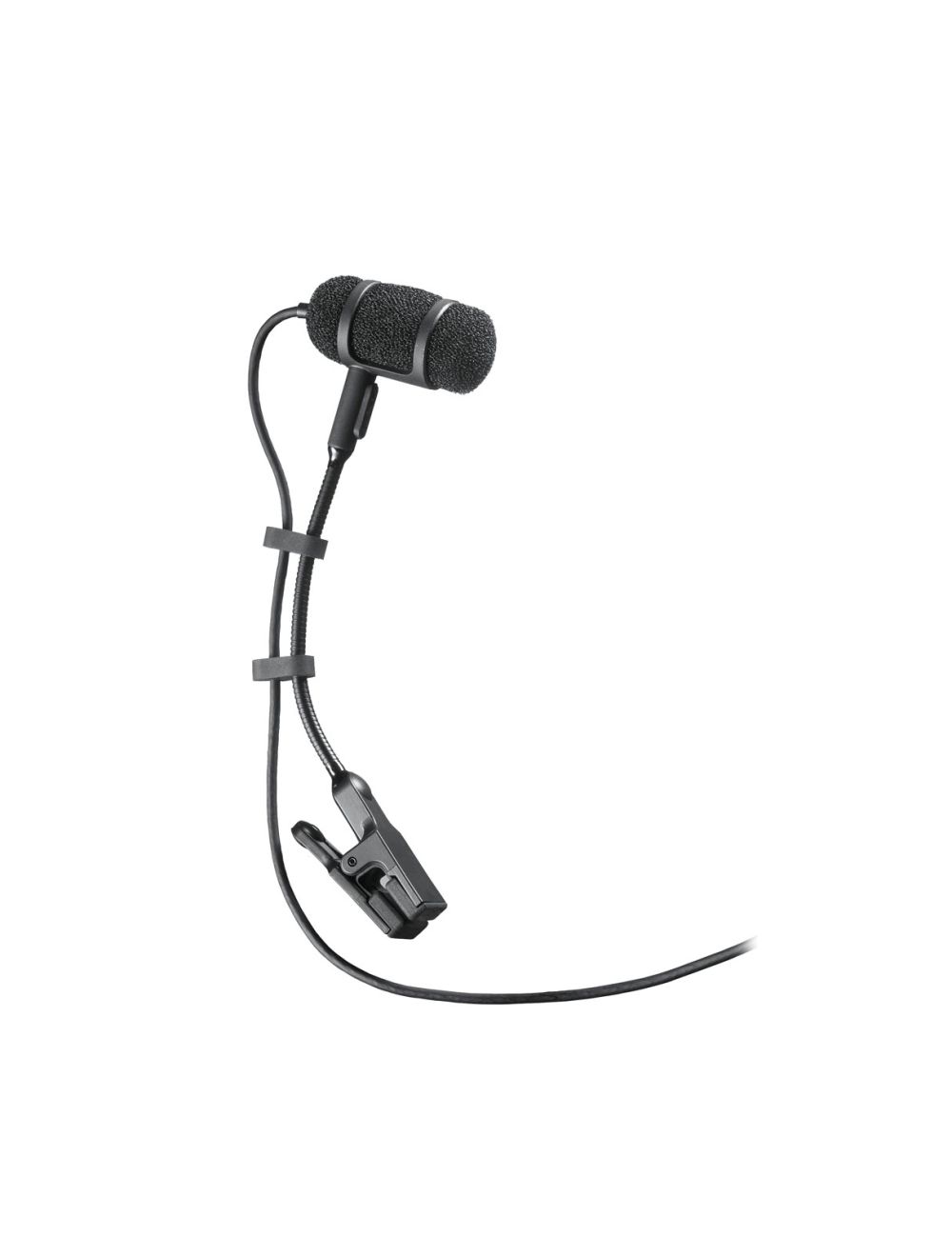

Designed for sax, toms, brass and percussion, the PRO 35 excels in high-SPL applications and is ideal for active stage performances. Its extended frequency response captures subtle nuances of the performance. The included UniMount® clip permits accurate positioning and provides shock resistance while protecting the element. The microphone’s cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.
Specifications:
ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 50-15,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY -45 dB (5.6 mV) re 1V at 1 Pa
IMPEDANCE 250 ohms
MAXIMUM INPUT SOUND LEVEL 145 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 115 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 64 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11-52V DC, 2 mA typical SWITCH Flat, roll-off
WEIGHT (MICROPHONE) 0.3 oz (8 g)
WEIGHT (POWER MODULE) 2.9 oz (81 g)
DIMENSIONS (MICROPHONE) 0.98" (25.0 mm) long, 0.40" (10.2 mm) diameter
DIMENSIONS (POWER MODULE) 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 6.0' (1.8 m) long (permanently attached to microphone), 0.10" (2.6 mm) diameter, 2-conductor, shielded cable with TA3F-type connector

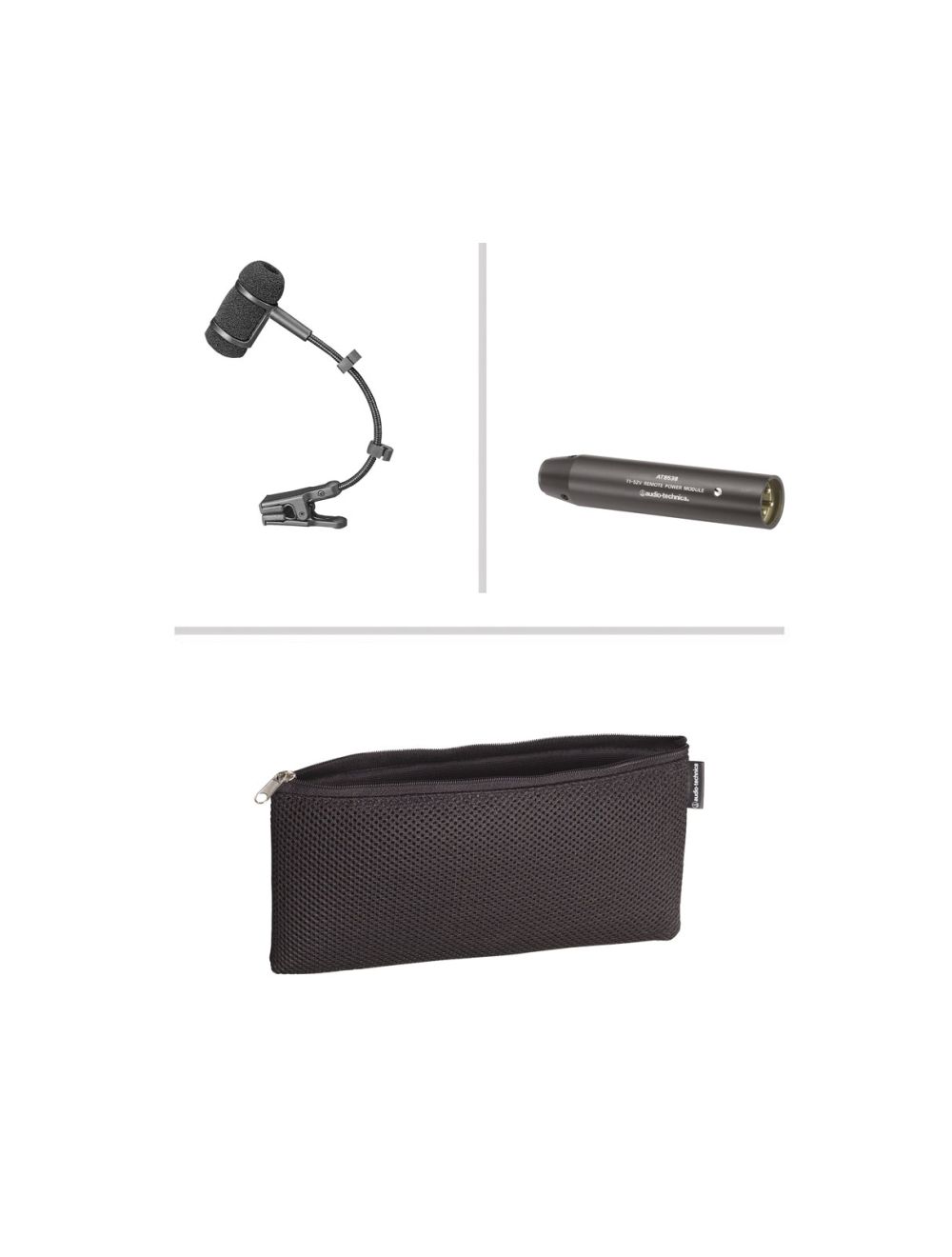

ACCESSORIES FURNISHED AT8418 UniMount® microphone instrument mount; AT8538 power module; soft protective pouch
AUDIO-TECHNICA CASE STYLE M12
| SKU | ATC-PRO35 |
|---|---|
| Brand | Audio-Technica |
| Weight | 0.650000 |
| Refund period | 35 days |
|---|
