Audio Technica AT4047MP
Multi-pattern Condenser Microphone
Audio-Technica’s AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone’s transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.
Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
Exceptionally low self-noise, wide dynamic range and high SPL capability

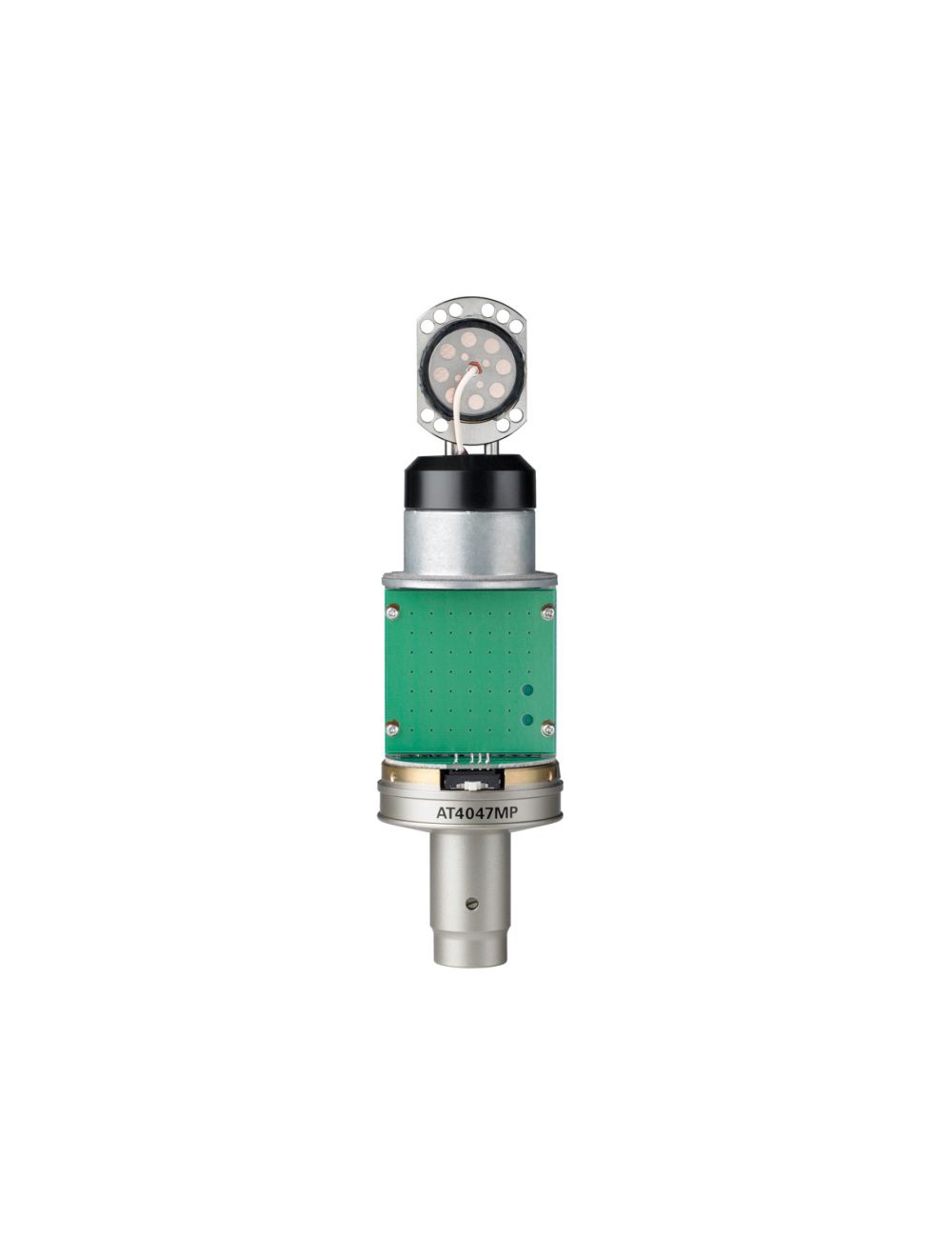

Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Vintage silver-matte finish on microphone and shock mount
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
Custom shock mount provides superior isolation
Integral 80 Hz high-pass filter switch and 10 dB pad switch
Certified by the METAlliance (Music Engineering and Technology Alliance)
Specifications:
Element Externally-Polarized (Dc Bias) Condenser
Polar Patterns Cardioid, Omnidirectional, Figure-Of-Eight
Frequency Response 20-18,000 Hz
Low Frequency Roll-Off 80 Hz, 12 Db/Octave
Open Circuit Sensitivity -42 Db (7.9 Mv), Re 1v At 1 Pa
Impedance 100 Ohms
Maximum Input Sound Level 155 Db Spl, 1 Khz At 1% T.H.D.; 165 Db Spl, With 10 Db Pad (Nominal)
Noise 14 Db
Dynamic Range (Typical) 141 Db, 1 Khz At Max Spl
Signal-To-Noise Ratio 80 Db, 1 Khz At 1 Pa
Phantom Power Requirements 48v Dc, 3.4 Ma Typical
Switches Polar Selection; Flat, Roll-Off; 10 Db Pad (Nominal)
Dimensions 188.0 Mm (7.40") Long, 53.4 Mm (2.10") Maximum Body Diameter
Output Connectors Integral 3-Pin Xlrm-Type
Accessories Furnished At8449/Sv Shock Mount For 5/8"-27 Threaded Stands; Microphone Dust Cover; Protective Carrying Case
Audio-Technica Case Style R1
Polar Pattern Cardioid
SKU
ATC-AT4047MP
Brand
Audio-Technica
Weight
3.550000
