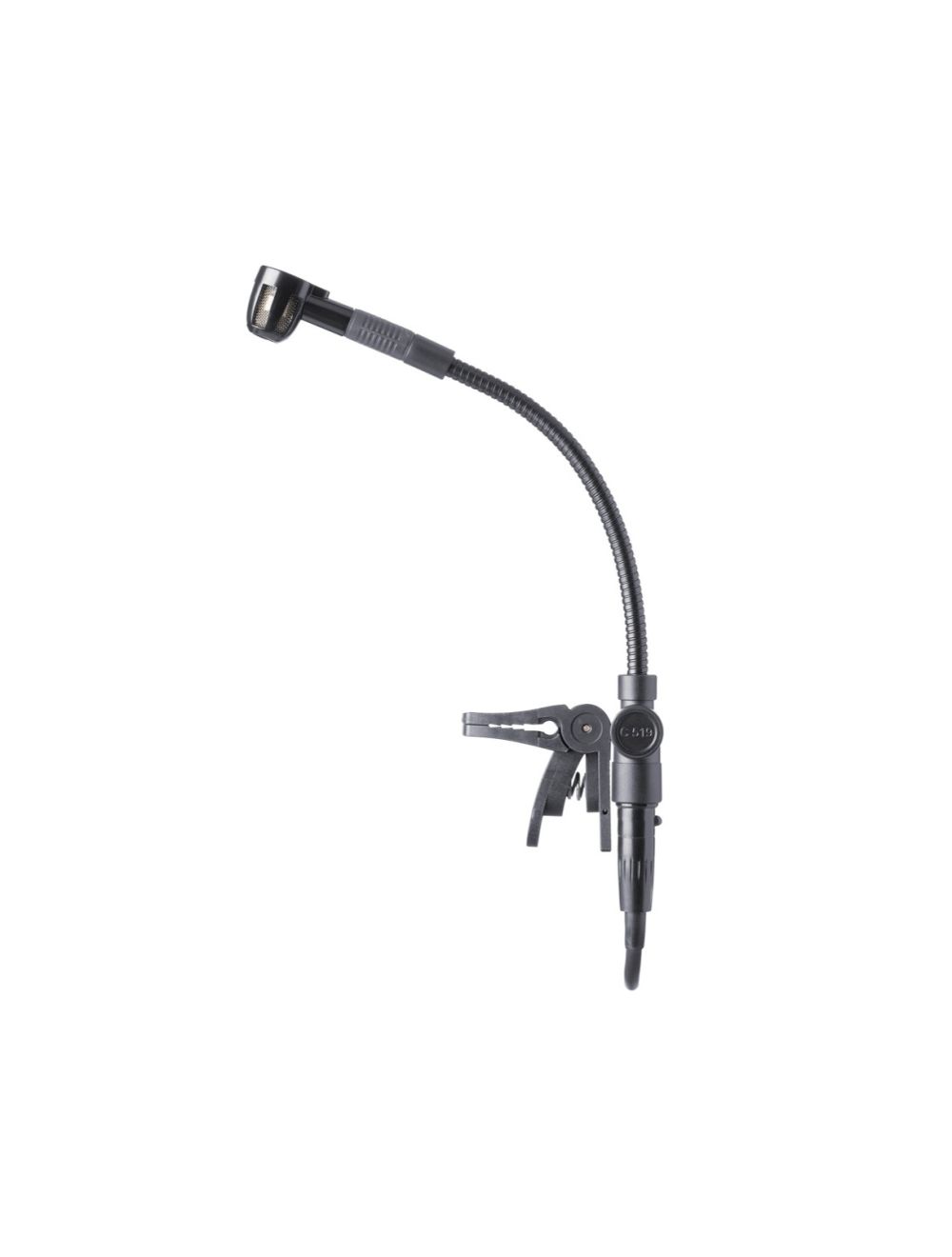

The AKG C519M is a high quality, miniature microphone designed for capturing woodwind and brass instruments for crucial recording and live sound applications. The C519M features an adjustable vice that allows mounting on the bell of trumpets, trombones, saxophones and much more.
The cardioid polar pattern reduces feedback and minimizes noise and leakage that may occur from adjacent instruments. An adjustable gooseneck provides stable microphone placement. The C519M is sure to be an efficient tool for crucial recording, project studio recording and live sound reinforcement.
| Polar pattern | cardioid |
| Frequency range | 60 Hz to 20 kHz |
| Sensitivity | 5 mV/Pa (-46 dBV) |
| Max. SPL | 130/132 dB SPL (for 1 %/3 % THD) |
| Equivalent noise level | 31 dB(A) |
| Signal/noise ratio (A-weighted) | 63 dB |
| Impedance | <= 200 ohms |
| Recommended load impedance | >= 2000 ohms |
| Powering | <= 2 mA |
| Power requirement | B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack transmitters |
| Connector | 3-pin mini XLR |
| Cable | 1.5 m (5 ft.) |
| Finish | matte black |
| Dimensions | Length: 213 mm (8.4 in.) (microphone only); max. width: 47 mm (1.9 in.) |
| Net weight | C 519 M: 195 g (6.9 oz.) C 519 ML: 85 g (3 oz.) (microphone and cable) |
| Shipping weight | C 519 M: 430 g (15.2 oz.) C 519 ML: 310 g (11 oz.) |
| SKU | AKG-C519M |
|---|---|
| Brand | AKG |
| Weight | 3.000000 |
| Refund period | 35 days |
|---|
