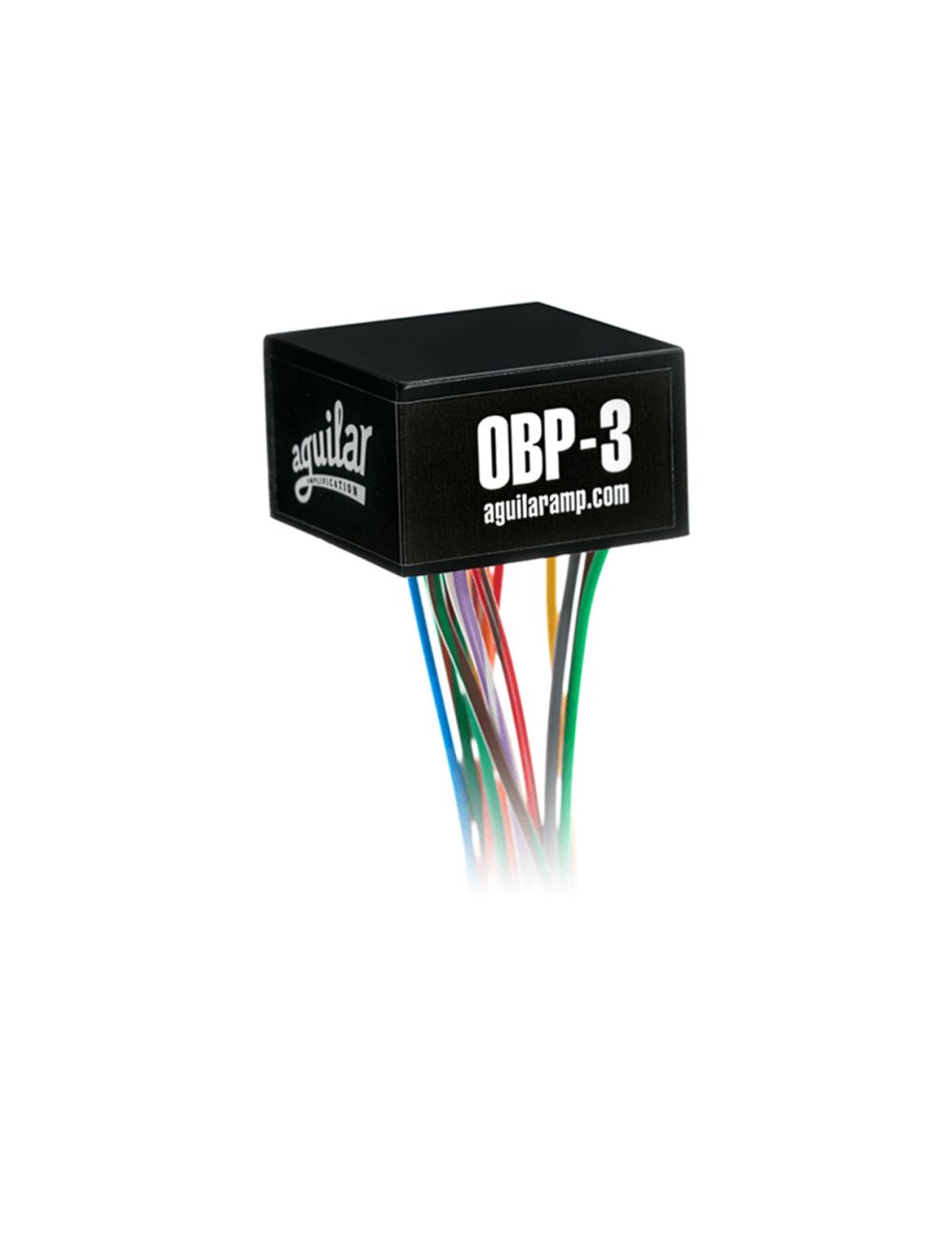

Aguilar OBP-3TK 3-Band Boost/Cut Onboard Bass Preamp w/Toggle

Aguilar OBP-3TK 3-Band Boost/Cut Onboard Bass Preamp w/Toggle

Aguilar OBP-3TK 3-Band Boost/Cut Onboard Bass Preamp w/Toggle

3-Band, Boost/Cut, 9 or 18 volts, 3 Pots, Mini-Switch Mid Shift
$179.99
In stock
SKU
AGL-OBP3TK

The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options and can be wired with either a push/pull pot OR mini-toggle for Midrange frequency selection.

  • Bass control : plus/minus 18 dB  40 Hz
  • Mid control : plus/minus 16 dB  400Hz or 800 Hz. User selectable frequency center
  • Treble control : plus/minus 16 dB  6.5 KHz
  • Input impedance : 1 meg ohm
  • Output impedance : 100 ohm 9 or 18 volts operation
  • Distortion : .019 into 10k ohm load
  • Noise : -95 dBm unweighted
  • Battery life : 324 hours
  • Wire lead length : 6.50 inches
  • Low noise discrete FET input stage, center detent 50 K linear pots, with a dual concentric pot
  • Dimensions : 0.98″W x 0.98″L x 0.59″D
SKU AGL-OBP3TK
Brand Aguilar
Weight 1.000000
