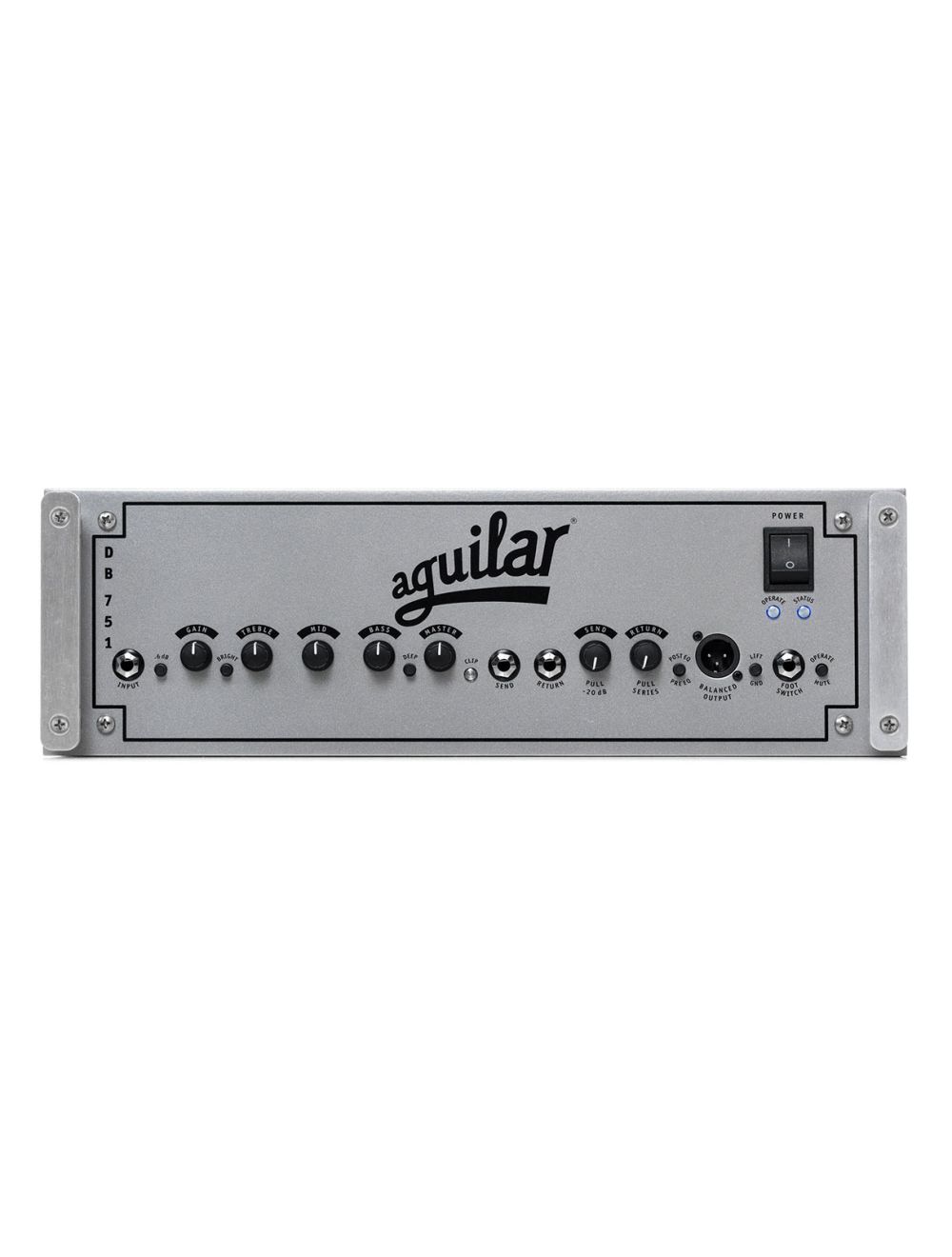

The DB 751 combines the legendary tube-driven tone of the DB 750 with greater EQ control. A perfect combination of raw power and excellent tone, the DB 751 continues the legacy set by the world famous DB 750. Delivering 975 Watts at 2 ohms and 750 Watts at 4 ohms, this amp has the headroom you need to play any size venue.
Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators) Power Output : 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms Preamp Section : Three 12AX7’s Power Section : 12 complimentary lateral MOSFETs Transformer : Custom Aguilar toroidal power transformer EQ Section : passive tone stack with active midrange element Bass : +12 / -12 @ 40Hz Midrange : +12 / -12 @ 750Hz Treble : +12 / -7 @ 4kHz Deep Switch : Adds 5 dB of broadband boost at 30 Hz Bright Switch : Adds 5 dB of broadband boost at 5-7 kHz Effects Loop : Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation Inputs : One 1/4″ input jack with an active/passive switch Outputs : Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out. Cooling : Two high-quality whisper fans with thermal speed control Dimensions : 17″ W x 14″ D x 5.25″ H
SKU
AGL-DB751
Brand
Aguilar
Weight
48.000000
More Information
Refund period
35 days
