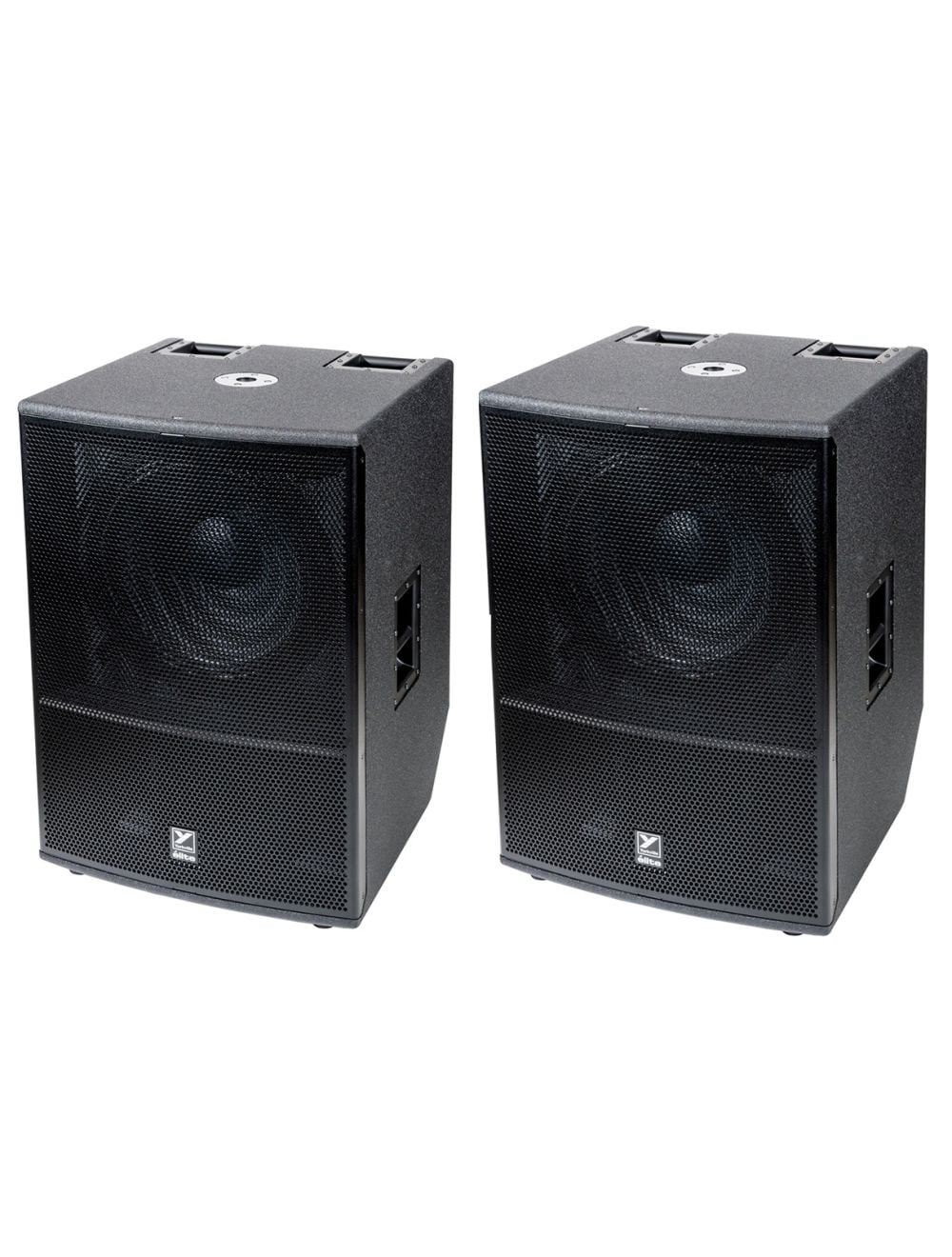

2x Yorkville ES18P

Yorkville ES18P

• Next Generation Rear Horn Loaded Powered Subwoofer Design
• Class Leading Output and Bass Response
• Astonishing Output for a 'Car Friendly' 15-inch Subwoofer
• Custom Designed Long Excursion Cast Frame 18-inch Driver with 4-inch Voicecoil
• Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
• Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
• System Type : Rear Horn Loaded Subwoofer
• Active or Passive : Active
• Program Power (Watts) : 1600 Watts (3200 Watts Peak)
• Max SPL (dB) : 140dB Peak (134dB Continuous)
• Frequency Response (Hz +/- 3dB) : 43 - 150 (Hz +/- 3dB)
• LF Driver(s) : 18-inch Cast Frame Woofer w/4-inch Voicecoil
• Power Consumption (typ/max) : 120V (4A /4.5A), 230V (2A / 2.3A)
• Level Controls : Master
• LED Indicators : Power, Activity, Protection (Clip, X-Max, Temp)
• Bar Handles : 2 x top, 2 x bottom
• Pole Mount Adapter (1 3/8"-3.5cm) : 1 (Top) (1 3/8"-3.5cm)
• Enclosure Materials : 15mm (5/8inch) 11-ply Russian Birch
• Covering / Finish : Black Ultrathane Paint
• Dimensions (DWH xbackW, inches) : TBD
• Dimensions (DWH xbackW, cm) : TBD

In / Out Connections

• 1 x XLR Input
• 1 x XLR Mono Blend Input
• 1 x ¼-inch Link Input
• 1 x ¼-inch Link Output
• 1 x XLR Link Output

Other Controls

• Active Controls : Mode - 1 Punchy, 2 Smooth, 3 Deep
• High Frequency Roll-off - 80Hz to 150 Hz
