Product Description for the Shure BLX14R/SM35 (Band H10)

The BLX14R/SM35 Headworn Wireless System from Shure includes a BLX4R single-channel rackmount wireless receiver, a BLX1 bodypack transmitter, and an SM35 headset condenser microphone. The system is set to Shure's H10 frequency band and operates between 542 - 572 MHz.

The BXL1 bodypack transmitter has a 300' line of sight operation range with the BLX4R receiver. It is powered by two included AA batteries that can provide up to 14 hours of operation. The BLX4R receiver features microprocessor-controlled internal antenna diversity that helps prevent interference and signal dropouts. Its one-touch QuickScan feature detects the most interference-free frequency and sets the channel to it for fast setup.

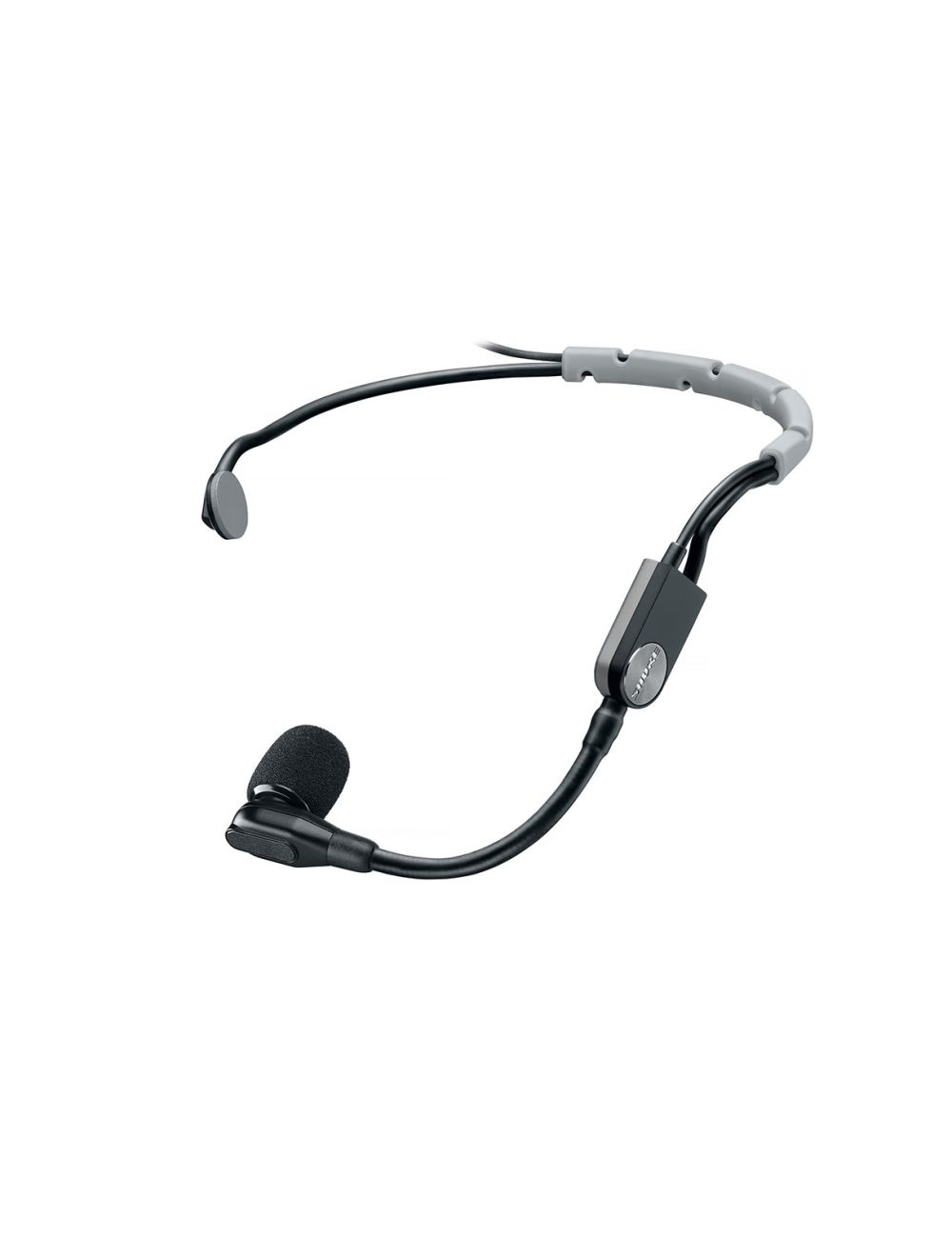

SM35 Performance Headset Condenser Microphone

The TA4F SM35 Performance Headset Condenser Microphone from Shure is a wireframe headset cardioid condenser microphone that can be used for a variety of active vocal and general speech performance applications. A snap-fit windscreen is included.

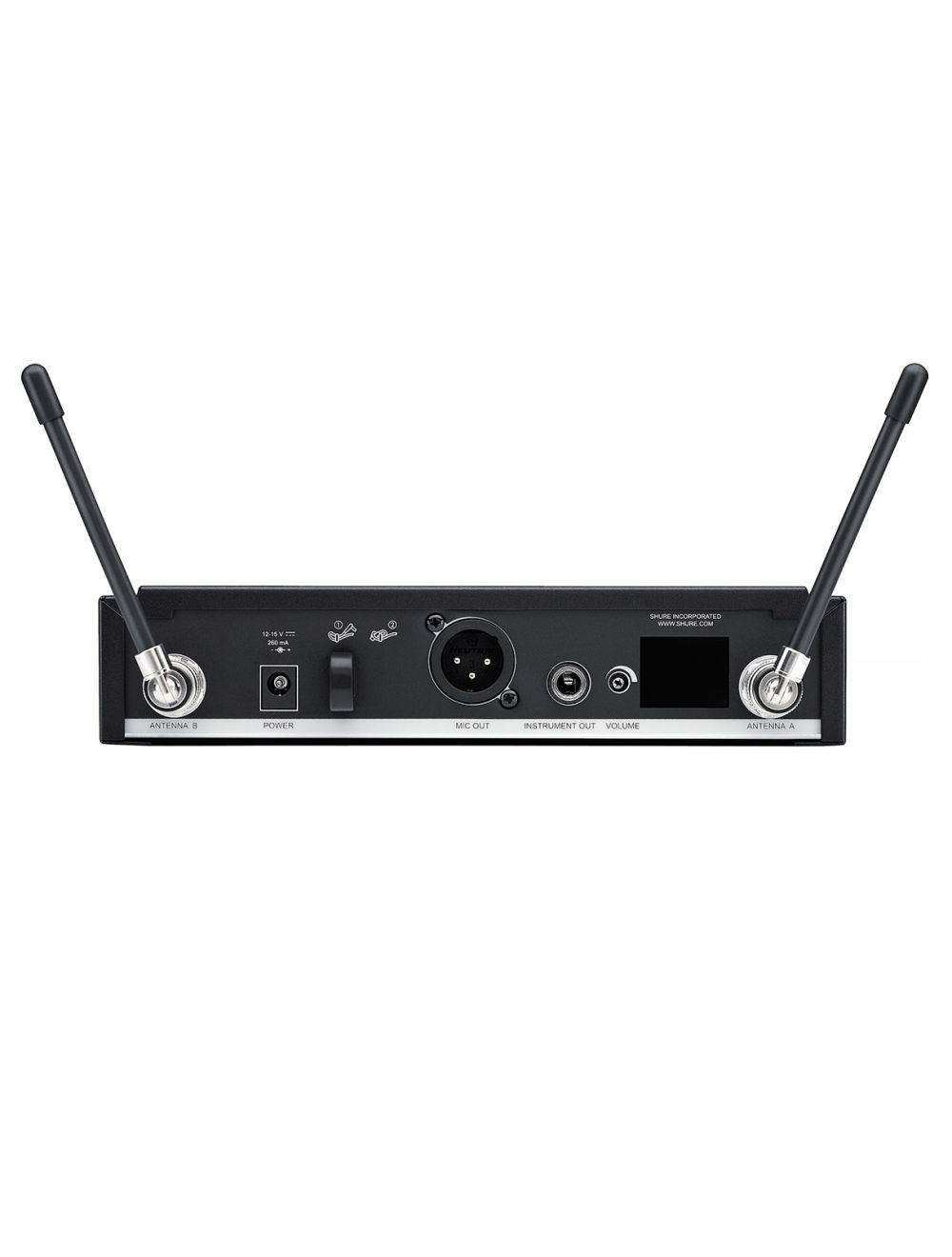

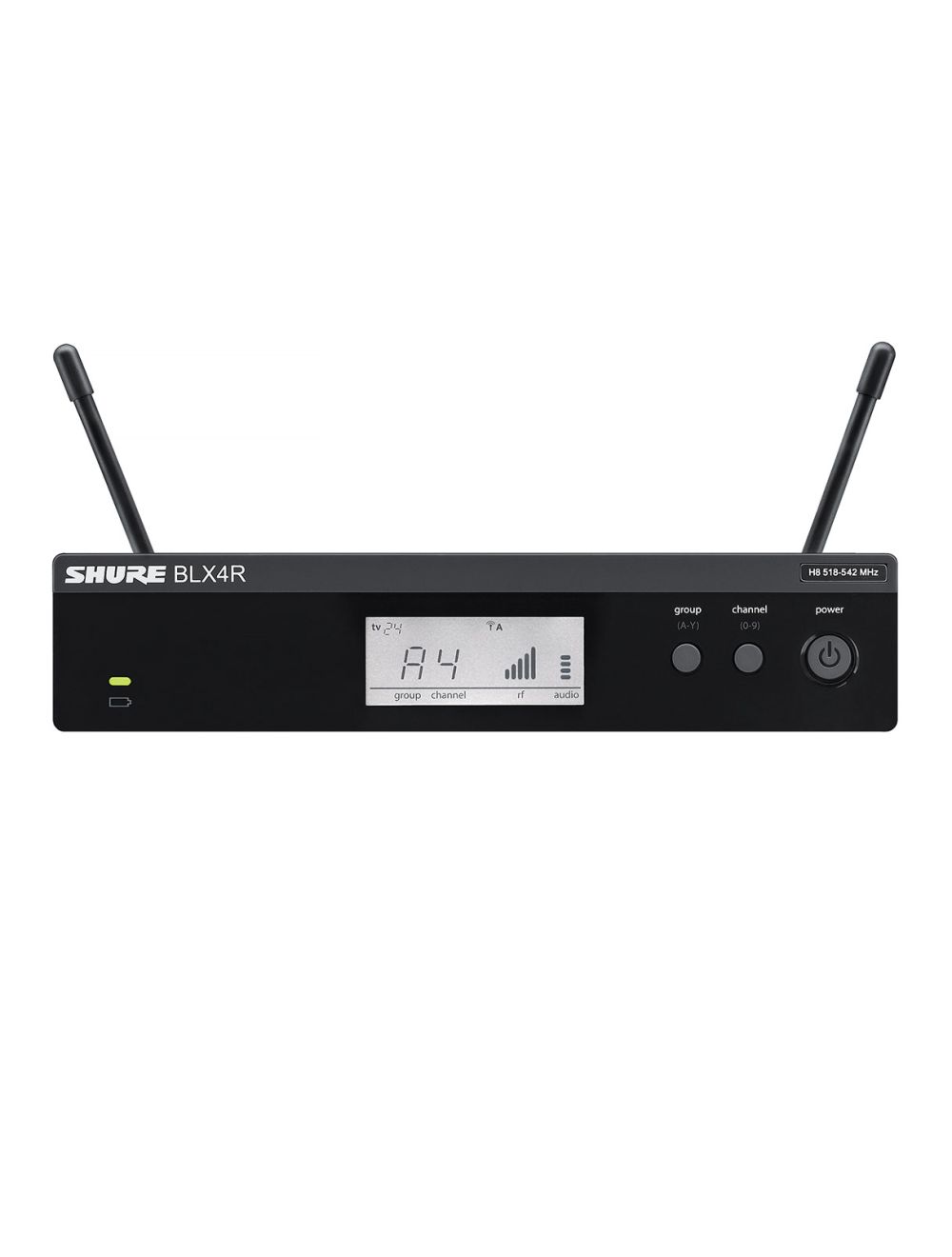

BLX4R Single-Channel Wireless Rackmount Receiver

The BLX4R Wireless Rackmount Receiver from Shure is a single-channel receiver set to Shure's H10 frequency band and operates between 542 to 572 MHz. It has dual antennas with microprocessor-controlled internal diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the available frequency with the least amount of interference.

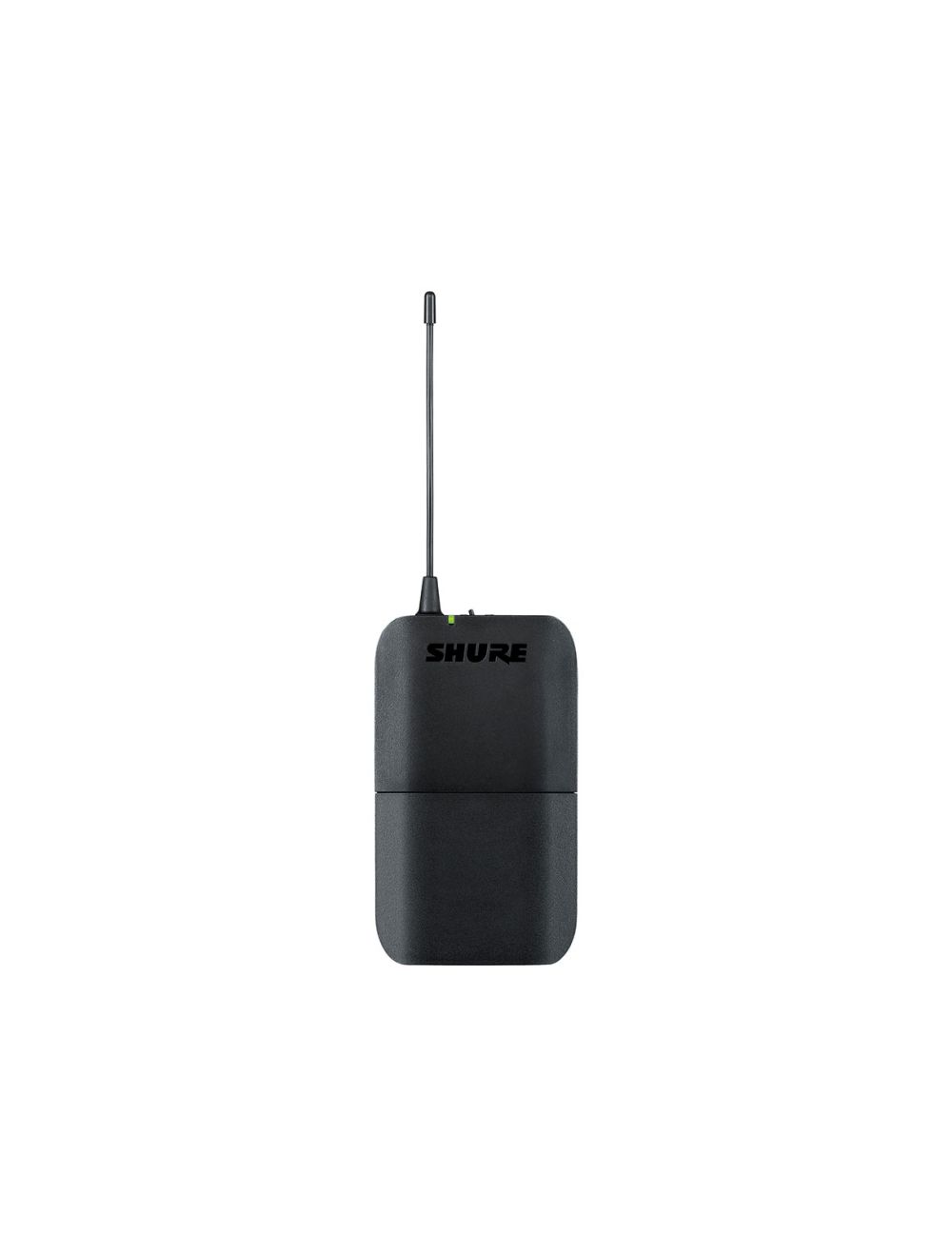

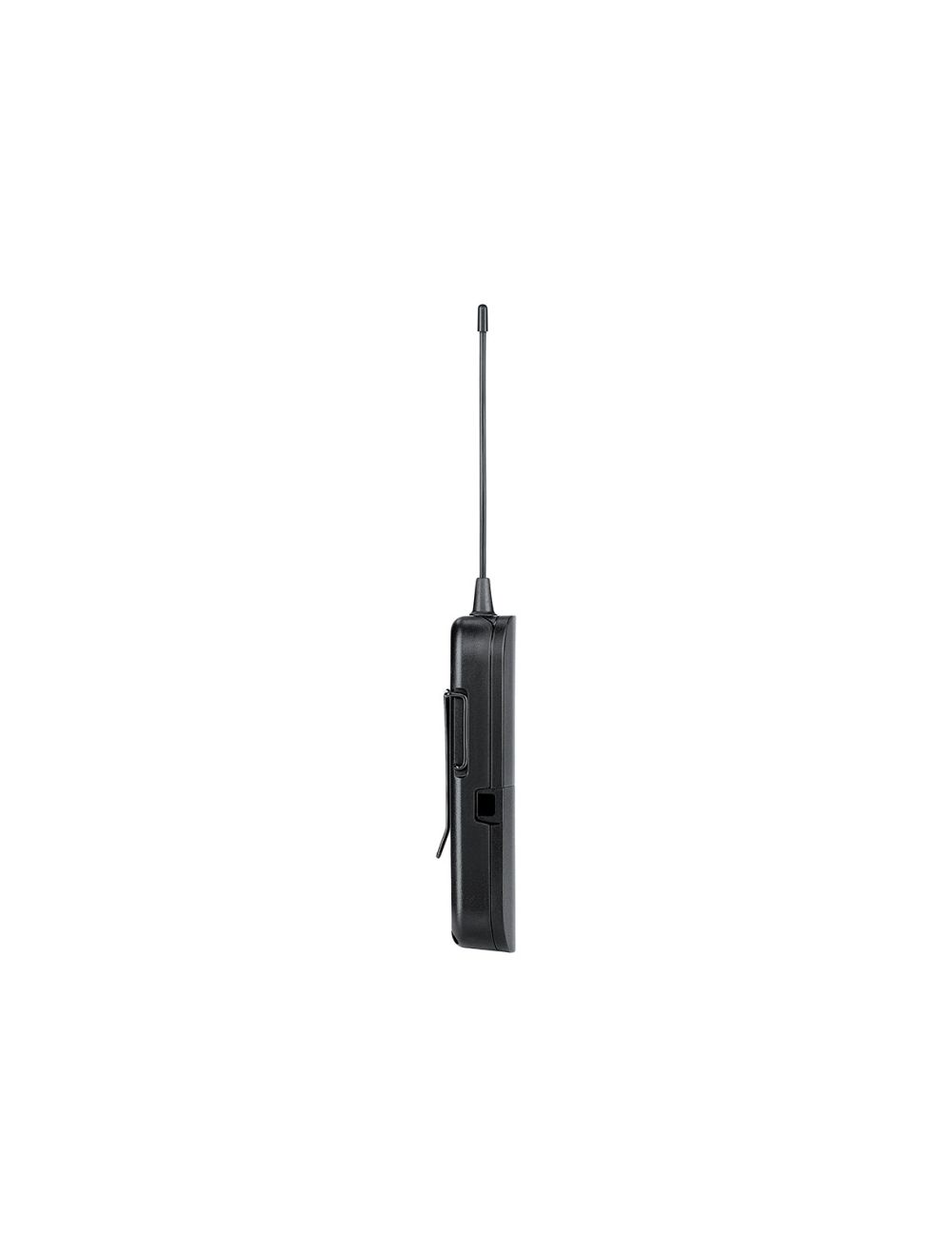

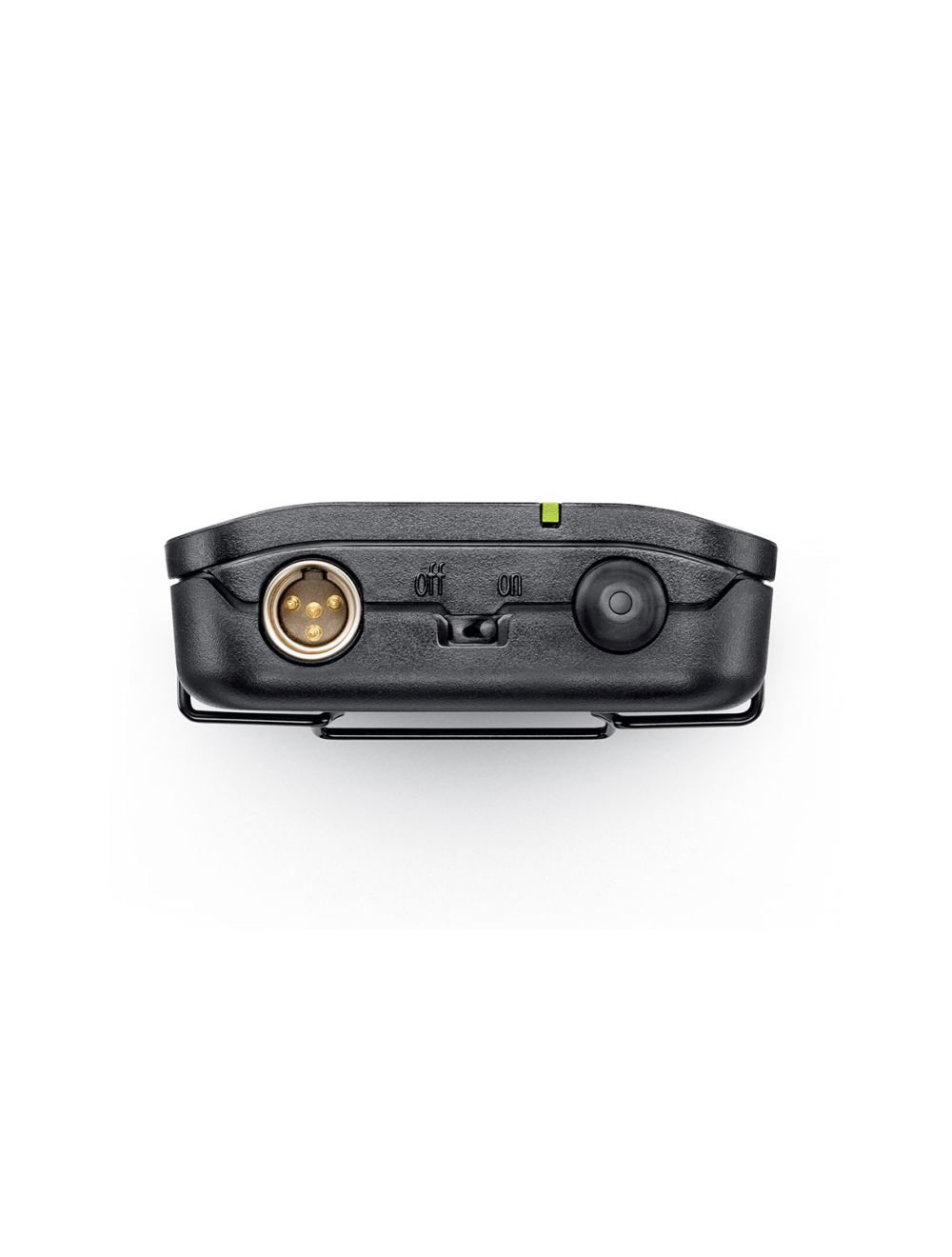

BLX1 Bodypack Transmitter

The BLX1 Bodypack Transmitter from Shure is designed for use with Shure's BLX wireless systems. It is set to the H10 frequency band and operates between 542 and 572 MHz. It has a TQG input and can be used with Shure lavalier, headset, earset and instrument microphones. With the optional WA302 adapter cable, the BLX1 can be used as a transmitter for guitar. The unit has a top panel mounted on/off switch as well as volume control for quick access while speaking or performing. The BLX1 is powered by the two included AA batteries for up to 14 hours.



SM35 Performance Headset Condenser Microphone

  • Frequency Response : 40 Hz to 20 kHz
  • Polar Pattern  : Cardioid
  • Output Impedance : 2400 Ω @ 1 kHz, typical
  • Audio Output Level : -59 dBV/Pa
  • Signal to Noise Ratio : 55 dB @ 1 kHz

BLX4R Single-Channel Wireless Rackmount Receiver

  • RF Sensitivity : -105 dBm for 12 dB SINAD, Typical
  • Image Rejection : >50 dB, Typical
  • Housing : Molded ABS, Steel
  • Power Requirement : 12 to 15 VDC @ 260 mA, Supplied by External Power Supply (Tip Positive)
  • Output : 1x XLR Output 1x 1/4" (6.35 mm) Output

BLX1 Bodypack Transmitter

  • Audio Input Gain: -16 dBV (Maximum), 10 dBV (Minimum)
  • Gain Adjustment Range : 26 dB
  • Input Impedance : 1 MOhm
  • RF Output : 10 mW, Typical
  • Housing : Molded ABS
  • Power Requirement : 2x LR6 AA Batteries, 1.5 V Alkaline
Brand Shure
Weight 15.0000
Dimensions (WxHxD) No
