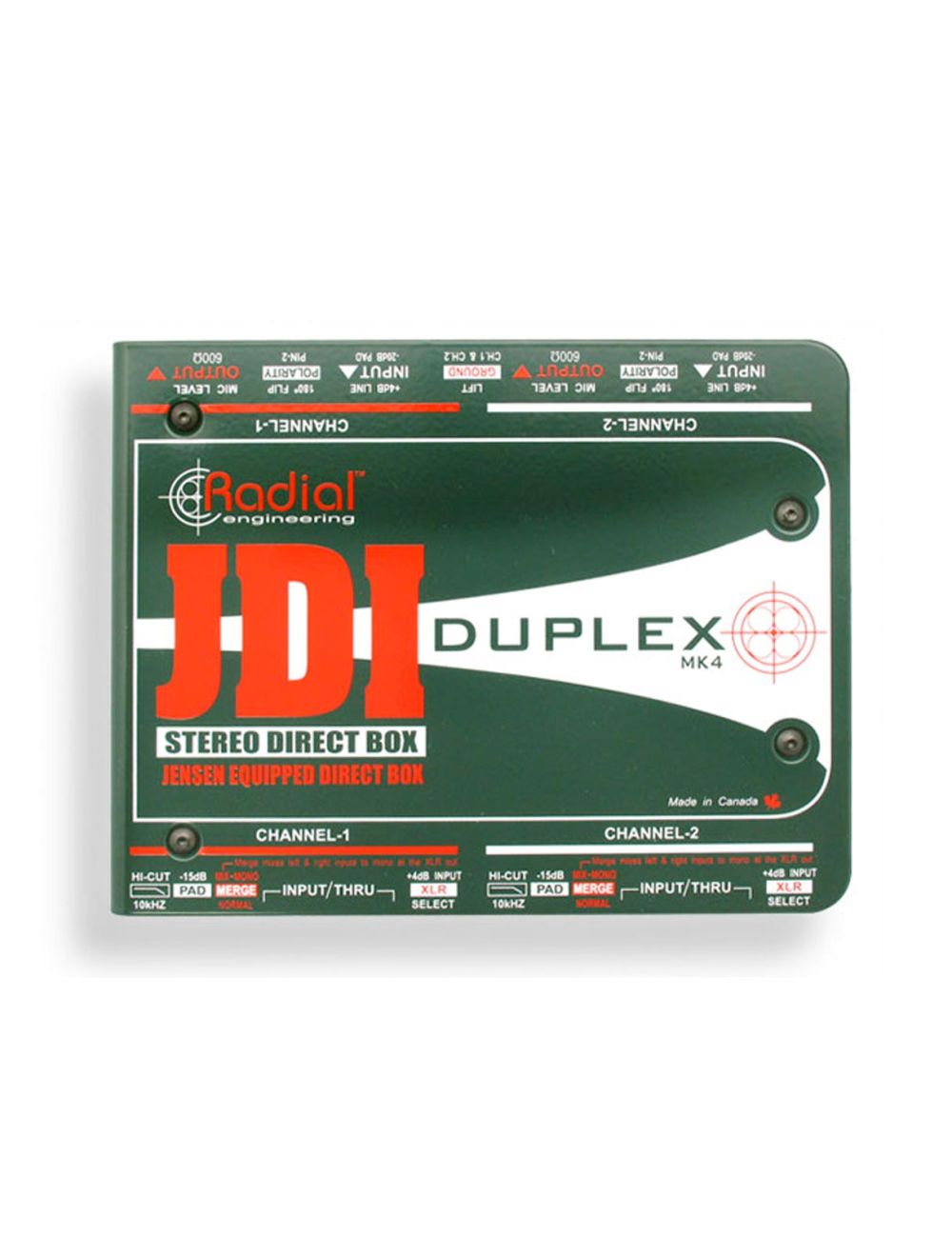

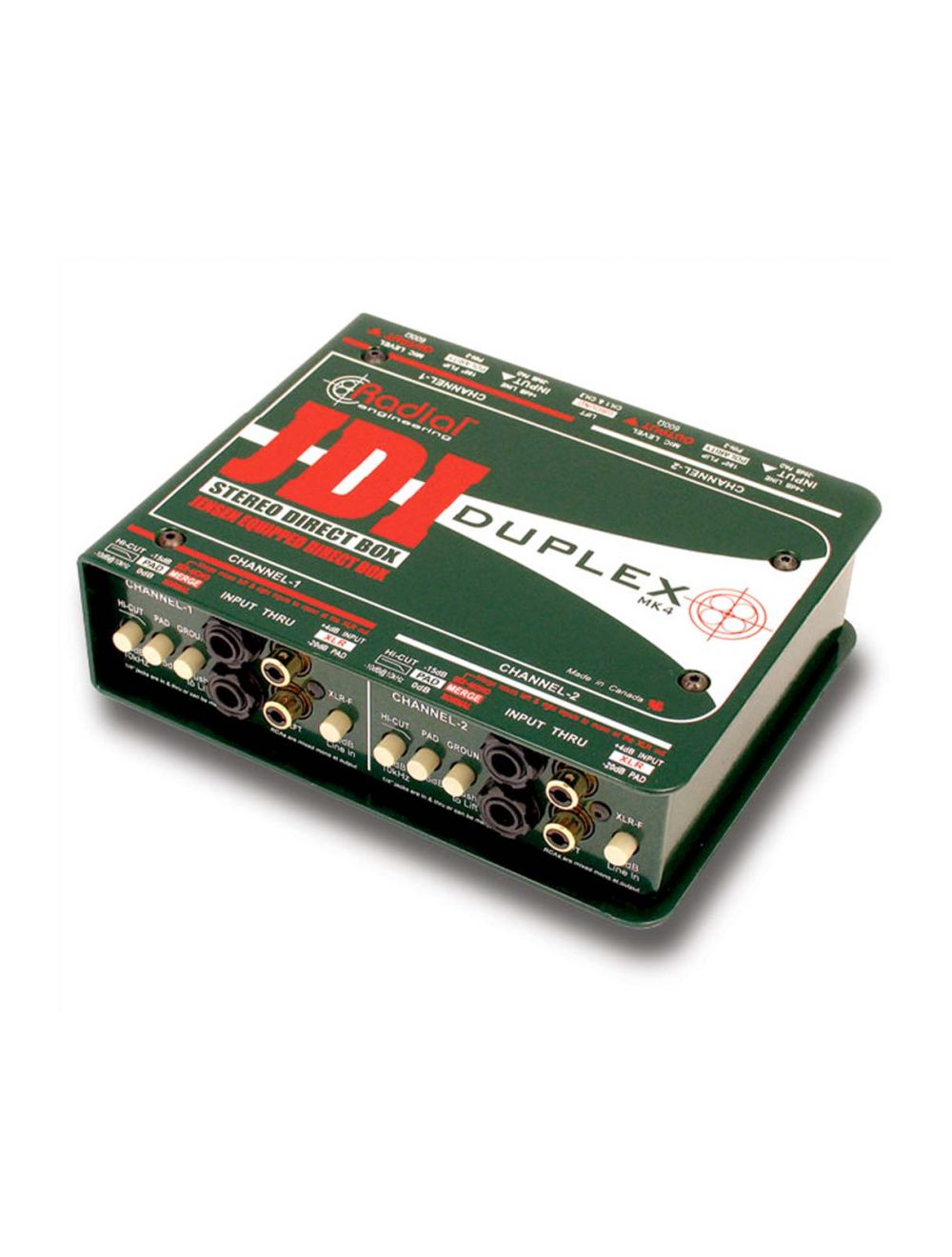

Radial JDI Duplex

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Radial JDI Duplex

Passive Stereo Direct Box

Brand New

Out of stock

"Don't See The Deal You Want?" Request A Deal

  • Google Playstore
  • Apple store

Product Description for the Radial JDI Duplex

The Radial JDI Duplex is a full-feature, stereo passive direct box designed to enhance connectivity, reduce noise, and simplify the hectic life of the touring professional, broadcast engineer or AV integrator. It is plug-and-play easy to use while delivering the utmost sonic quality.

Like the Radial JDI, the Duplex employs two high-performance Jensen audio transformers and the same pristine audio signal path that has made the JDI the industry standard. It features exceptional signal handling with virtually zero phase shift or harmonic distortion, while remaining linear across the entire audio spectrum. When driven to extremes, the natural transformer saturation and resulting warm Bessel curve makes the Radial Duplex the perfect choice for smoothing out highly dynamic instruments such as digital pianos and electronic drums that can sound harsh when pushed. Transformer isolation provides the additional benefit of eliminating troublesome ground loops that can cause hum and buzz in the audio system or interfere with video displays.

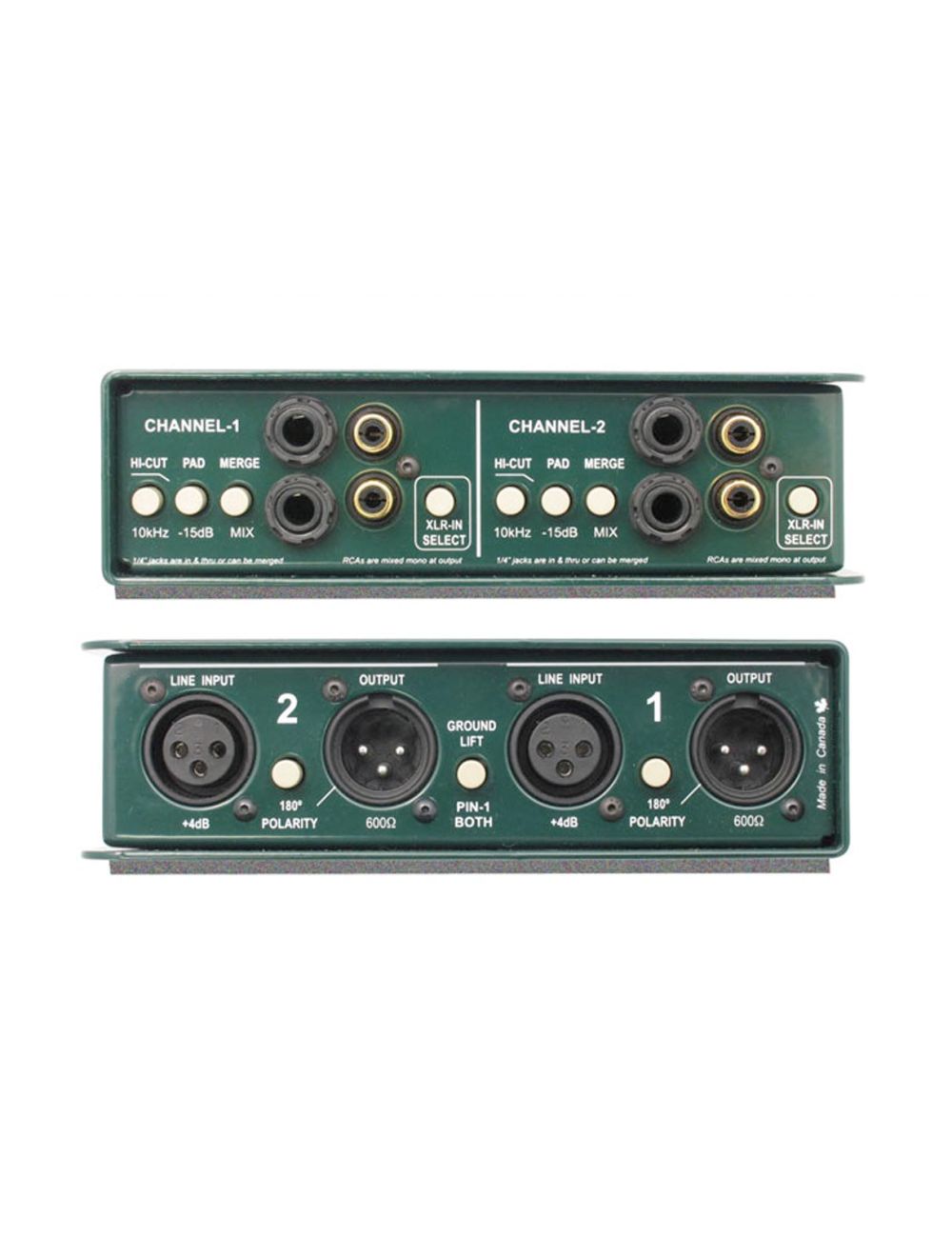

This 'Swiss Army knife' DI is equipped with ¼' connectors for instruments, RCA connectors for unbalanced -10dB consumer electronics and XLR inputs for +4dB professional line sources. Radial's innovative book-end design provides protective zones on the front and rear to keep connectors and switches out of harm's way. The 14 gauge I-beam inner frame adds tremendous rigidity to eliminate outside stresses that could torque the PC board and cause premature solder joint and trace failure. The steel outer shell couples with the transformer's mu-metal shield to protect against stray magnetic fields from power transformers or lighting systems that could cause interference. Finally, a full-bottom no-slip pad works double-duty by providing both mechanical and electrical isolation. The Radial JDI Duplex delivers outstanding connectivity, superlative audio and quiet dependable performance.

The Duplex… the world's finest passive stereo direct box.


  • Stereo direct box for high output sources
  • Jensen transformers for warm Bessel curve
  • Virtually zero distortion from 10Hz to 40kHz
  • Built to handle the extremes of concert touring
  • Audio circuit type : Passive, transformer based
  • Number of channels : Dual channel (stereo)
  • Frequency response : 20Hz ~ 20KHz (± 2dB)
  • Dynamic range : 135dB
  • Maximum input : +20dB @ 1kHz
  • Total harmonic distortion : 0.001%; 1kHz/+4dBu; 600 Ohm load
  • Phase deviation : -1° @ 20Hz; 0.5° @ 150Hz; 600 Ohm load
  • Input impedance : 140k Ohm PAD off; 10k Ohm PAD on
  • Input impedance - balanced FXLR : 10k Ohm
  • Output impedance - balanced MXLR : 600 Ohms
  • Transformer : Jensen JT-DBE
  • Shield :   Dual Faraday, MuMETAL® can
  • Input pad : -15dB (¼" and RCA inputs only)
  • Sub mono : Resistive summing mixer
  • 180° polarity reverse : Toggles pins 2 and 3 at the XLR outputs
  • Ground lift : Disconnects pin-1 at XLR output
  • XLR input : +4dB balanced female XLR
  • XLR configuration : AES standard (pin-2 hot)
  • Connectors : 1/4", RCA, 3.5mm TRS in, XLR-F in, XLR-M out


  • Construction : 14 gauge steel chassis & outer shell
  • Finish : Durable powder coat
  • Size : (W x H x D) 160mm x 48 x 127mm (6.3" x 1.9" x 5")
Brand Radial
Weight 4.4000
Dimensions (WxHxD) 5.75" x 8.25" x 3.25"
