Product Description for the Midas DL32
Digital mixing has revolutionized virtually everything in the live entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box.
The DL32 provides 32 MIDAS PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 100 m / 328'). While KLARK TEKNIK, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.
MIDAS - The Legend in Sound Quality
Ever since our formation in the 1970s, we have had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary consoles, such as the XL4 and Heritage H3000 have quickly become industry standards.
We have earned an impeccable reputation due to our no-compromise approach to audio and build quality, and in particular for our Award-winning Mic Preamps, which are considered by industry experts as the industry’s best-sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

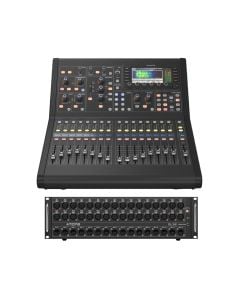

When used as part of a complete M32 system, two DL32 Stage Boxes can be cascaded via the built-in AES50 ports, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs and the ULTRANET port allows direct connection to TURBOSOND iQ Series loudspeakers and the BEHRINGER POWERPLAY P-16 Personal Monitoring System – which can feed up to 48 individual monitor mixers. We also included 2 optical ADAT sockets and AES-3 (AES/EBU) for connecting to outboard devices, a convenient USB port for system updates via your PC – plus MIDI I/O for lighting systems and sound module control.
Standalone Snake Mode
The DL32 was initially designed with our flagship M32 Digital Mixing Console in mind, but any mixing board with AES50 networking capability can still tap into the DL32’s powerful feature set. So even if the gig calls for an analog board, you can quickly assemble a couple of DL32 and XL48 to create a high-performance, lightweight 32 x 16 digital snake – with full remote preamp control.
KLARK TEKNIK AES50
KLARK TEKNIK SuperMAC (AES50-Compliant) technology gives the DL32 its high-capacity, ultra-low latency digital interconnectivity, as well as superbly simple deployment and ease of use. KLARK TEKNIK engineers worked hand-in-hand with MIDAS to ensure the DL32 meets, or exceeds, the requirements of live entertainers and their professional audio engineers. Some of the outstanding features are:
- 48 bidirectional audio channels over Cat 5e cable (48 kHz)
- Single cable duplex interconnection for audio and sample clocks
- Ethernet physical layer audio data transmission
- High channel count and ultra-low deterministic latency
- Accurate phase-aligned clock distribution.
- Comprehensive error detection and management
- Provision for redundant networking
- Minimal configuration – total ease of deployment and use
- Ethernet TCP/IP protocol-compatible auxiliary data channel
- Royalty-free implementations available as Xilinx FPGA cores
- OEM modules available from developer partners.
As you can see, the DL32 is an extremely versatile 32 x 16 digital stage box solution with our remote-controllable mic preamplifiers, KLARK TEKNIK’s AES50 connectivity and a wealth of other professional-grade features – all at a price anyone can afford. Built tough enough to withstand the rigors of the road, the DL32 only takes up two rack spaces and connects to FOH with a single, inexpensive CAT5 cable.
