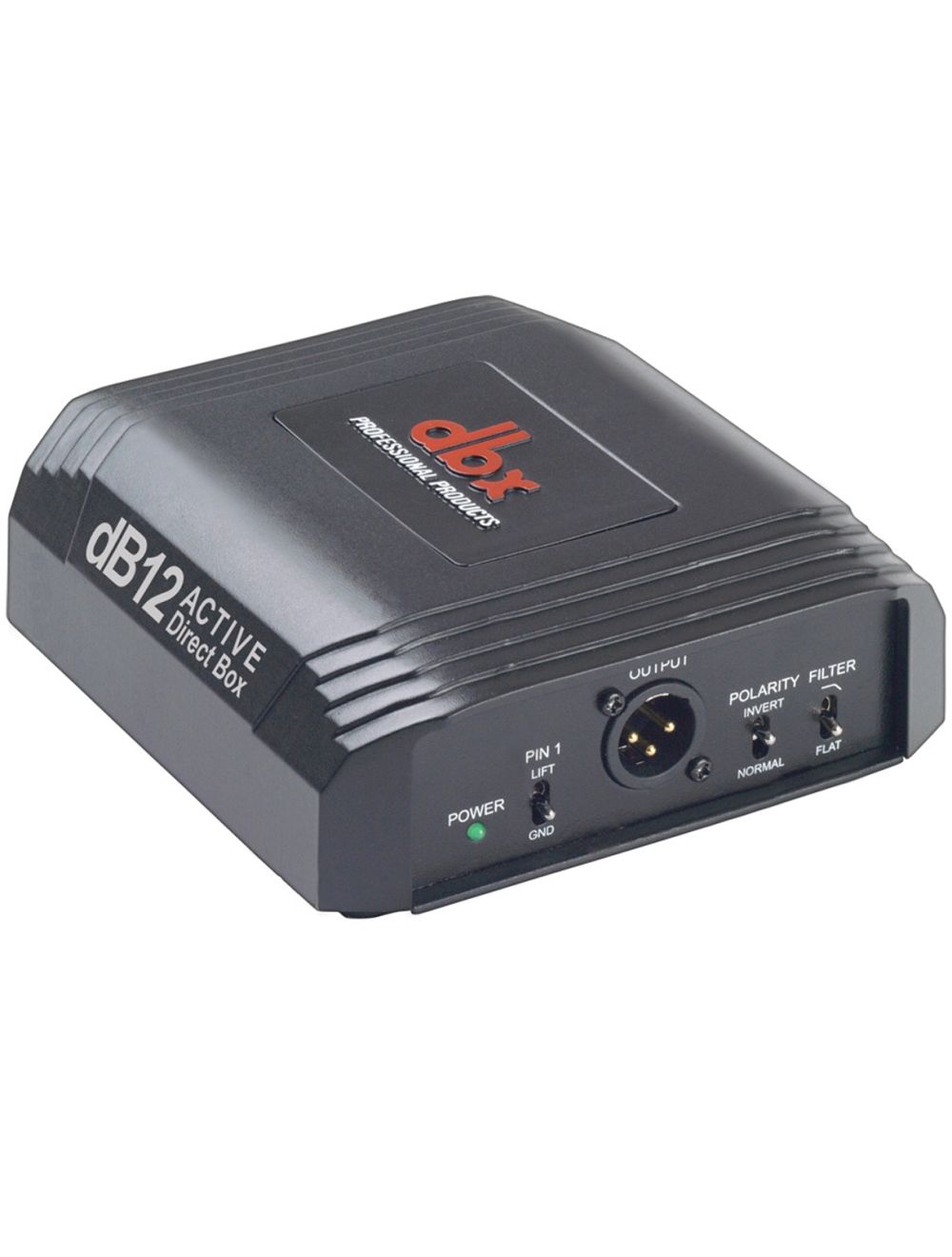

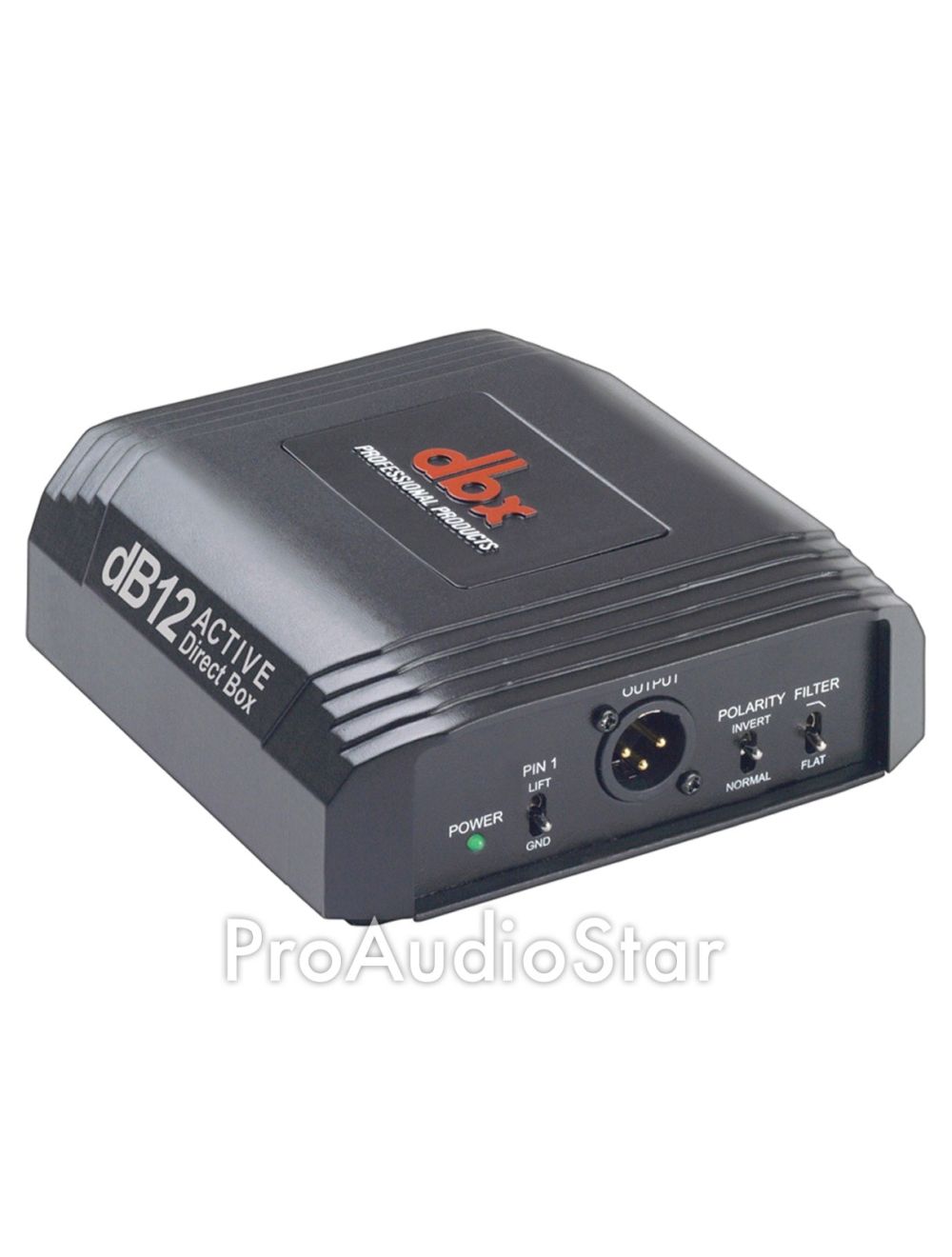

DBX dB12 Active Direct Box

150 impedance, XLR male and 1/4" jack connector, 1 line level,

DBX DB12

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • DBX DB12
Brand New
Affirm Financing:
$99.99

Availability: In stock now

"Don't See The Deal You Want?" Request A Deal

Question about this item?

Call: 888-890-6222

.

Product Description for the DBX dB12 Active Direct Box

At dbx, when we do something, we do it right. So when we decided to create our new direct injection boxes, we didn’t settle for the same old tired approach to direct box design. With our dbx name on the line, how could we? One look at our new dB10 Passive and dB12 Active direct boxes will tell you that these are clearly different. With their bullet-proof construction, and extraordinary audio performance to rival their looks, finally there’s a direct box worthy of the dbx name.

Utilizing custom dbx mu-metal-shielded audio transformers, high-quality Neutrik® connectors, and low-noise circuitry preserves the sonic integrity and true characteristics of the signal source. Both boxes include a pad switch that accomodates instrument, line and even speaker level signals. Take even more control of your sound by utilizing the polarity invert switch to set the phase relationship between the direct and mic'd sound.

As a professional, you don’t have time for interference, so we’ve included a ground lift switch to solve potential hum and buzz problems due to ground loops. And between the combined shielding of the cast metal chassis and the custom-wound transformer, you can be doubly assured of a clean signal free from interference. All of this sits atop a solid, stable footprint, that will keep the box from being dragged around the stage, and the unique contoured underside allows secure stacking of multiple units.

So whether you need to control the level, placement in the mix, or overall characteristics of 4 independent signals or control the gain leveling on a couple of stereo pairs, the dbx dB12 is for you.

Features

  • Premium Performance
  • Rugged Design
  • Stackable Chassis with Durable Rubber Foot
  • Gold-plated Neutrik® XLR Connector
  • Premium Chrome Toggle Switches
  • Hi-Z 1/4" Input Jack
  • Parallel 1/4" Thru Jack
  • Transformer Isolated
  • Premium Shielded Custom dbx Transformer
  • Balanced XLR Lo-Z Output
  • 3-Way 0/20/40 dB Pad Switch
  • Flat/High-Cut Filter Switch
  • Output Polarity Invert Switch
  • Ground Lift Switch
  • 4 Year Warranty!

Additional dB12 Features

  • Phantom Powered
  • Green LED Phantom Power Indicator
  • +48V Phantom Operation
  • Low-Noise Active Circuitr

INPUT SECTION

Input: 1 instrument/line/speaker level

Connector: 1/4" jack

Type: Unbalanced, RF filtered

Impedance: 150k Ohm typical

Max Input Level: +20dBu (0dB pad)
+40dBu (20dB pad)
+60dBu (40dB pad)

OUTPUT SECTION

Thru Output: 1 parallel connection from input jack

Connector: 1/4" jack

Type: Unbalanced, RF filtered



Main Output: 1 line level

Connector: XLR male jack

Type: Balanced

Impedance: 150 Ohm typical

Max Output Level: 0dBu

PERFORMANCE

Transformer: Custom dbx mu-metal-shielded

Frequency Response: 20Hz to 20kHz, +/-2.5dB

Noise: <-105dB unweighted, 22kHz BW

THD: <0.01%, 20Hz to 20kHz BW
<0.005%, 1kHz

GENERAL

Dimensions: 5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)

Weight: 1.4 lbs / 0.65 kg

SKU DBX-DB12
Brand DBX
Weight 1.8600
Dimensions (WxHxD) 5.44" x 2.2" x 5.82"
