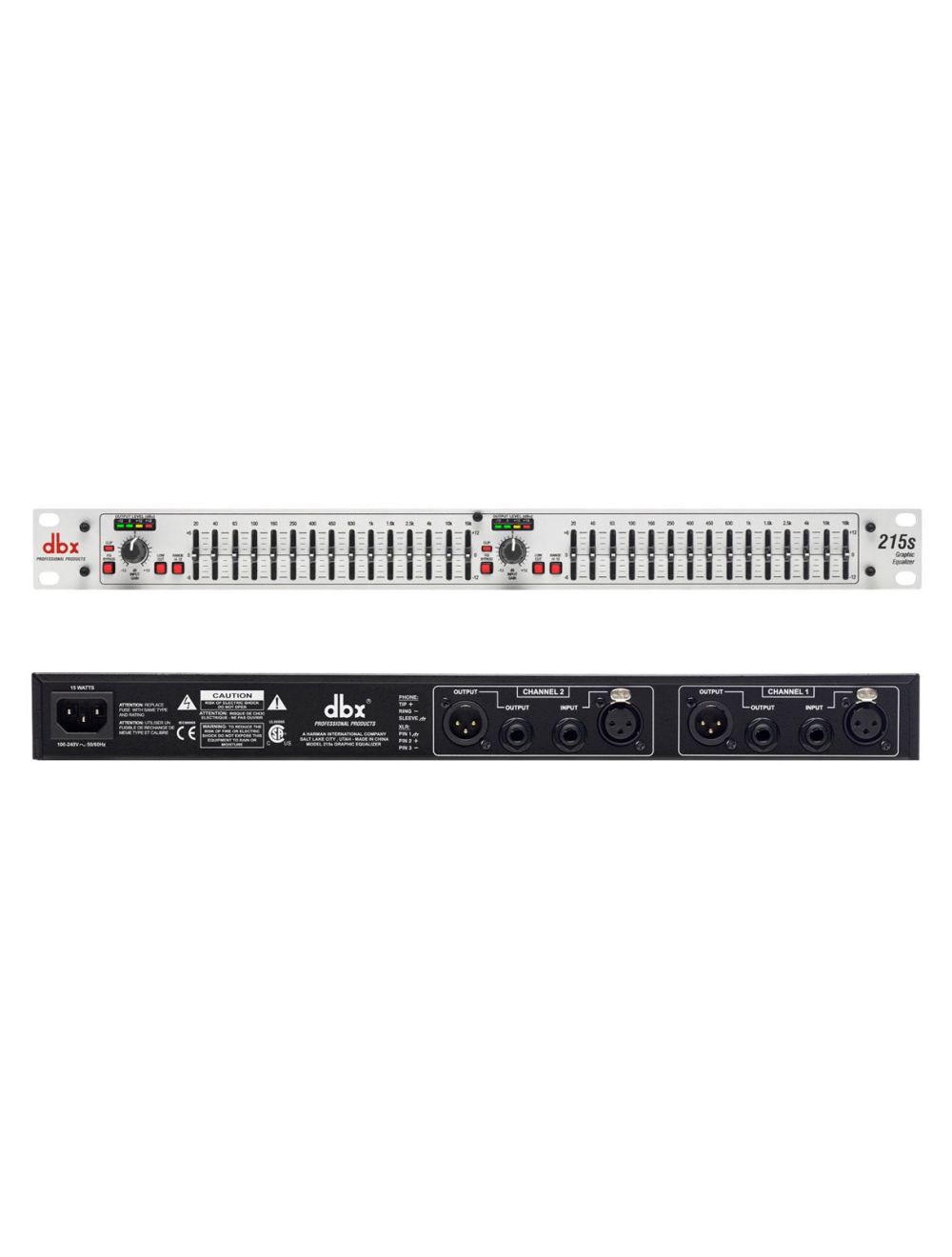

DBX 215S Dual Channel 15-Band Graphic Equalizer

Meets the needs of the most demanding sound reinforcement environments

DBX-215S

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • DBX-215S
  • DBX-215S
Brand New
Affirm Financing:
$159.95

Availability: In stock now

Used
Affirm Financing:
$139.95

Availability: In stock now

"Don't See The Deal You Want?" Request A Deal

Question about this item?

Call: 888-890-6222

.

Product Description for the DBX 215S Dual Channel 15-Band Graphic Equalizer

When the pros need an EQ, they turn to DBX. With a proven track record that spans four decades, DBX EQs are the industry standard for touring, studios, and audio installations. The DBX 215S Dual Channel 15-Band Graphic Equalizer meets the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls

The DBX 215S includes two 15-band channels of 2/3-octave equalization, ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering. From its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to detail, the 215S offers exceptional sound and rugged reliability that guarantees you will always sound your best.

Sure to find a home in the studio, on tour and with installed sound venues, the DBX 215S is destined to take its rightful place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such affordable quality, there's no longer any excuse for compromising your sound.

Features

  • Dual 15-band, 1/3-octave Constant Q frequency bands
  • Switchable boost/cut ranges of ±6 or ±12 dB
  • Front panel bypass switch
  • ±12 dB input gain range
  • 4-segment LED ladders for monitoring output levels
  • XLR and TRS Inputs and Outputs
  • Frequency Response of <10Hz to >50kHz
  • Dynamic range of greater than 108dB
  • Inputs:
    • Connectors: 1/4 inch TRS, female XLR (pin 2 hot)
    • Type: Electronically balanced/unbalanced, RF filtered
    • Impedance: Balanced 40k ohm, unbalanced 20k ohm
    • Max Input Level: >+21dBu balanced or unbalanced
    • CMRR: >40dB, typically >55dB at 1kHz
  • Outputs:
    • Connectors: 1/4 inch TRS, male XLR (pin 2 hot)
    • Type: Impedance-balanaced/unbalanced, RF filtered
    • Impedance: Balanced 100 ohm, unbalanced 50 ohm
  • System Performance:
    • Bandwidth: 20Hz to 20kHz, +0.5/-1dB
    • Frequency Response: <10Hz to >50kHz, +0.5/-3dB
    • Dynamic Range: Typically >112dB
    • Signal-to-Noise: Typically >95dB
    • THD+Noise: <0.003%
    • Interchannel Crosstalk: <-90dB, 20Hz to 20kHz
  • Function Switches:
    • EQ Bypass: Bypasses the graphic equalizer section in the signal path
    • Low Cut: Activates the 50Hz 12dB/octave high-pass filter
    • Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range
  • Power Supply:
    • Operating Voltage: 100VAC-240VAC 50/60Hz
    • Power consumption: 15W
    • Mains Connection: IEC receptacle
  • Physical:
    • Weight: 4.8 lbs.(2.2 kg)
    • Dimensions(HxDxW): 1.75  x 6 x 19 inches (4.4x15.24x48.26cm)
SKU DBX-215S
Brand DBX
Weight 6.0000
Dimensions (WxHxD) 1.75 x 6 x 19 inches (4.4x15.24x48.26cm) meets the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls
