Audio-Technica ATW-1101/L

2.4GHz Wireless Lavalier

Audio-Technica ATW-1101/L

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Brand New
Affirm Financing:
$349.95

Availability: In stock now

"Don't See The Deal You Want?" Request A Deal

Question about this item?

Call: 888-890-6222

.

Product Description for the Audio-Technica ATW-1101/L

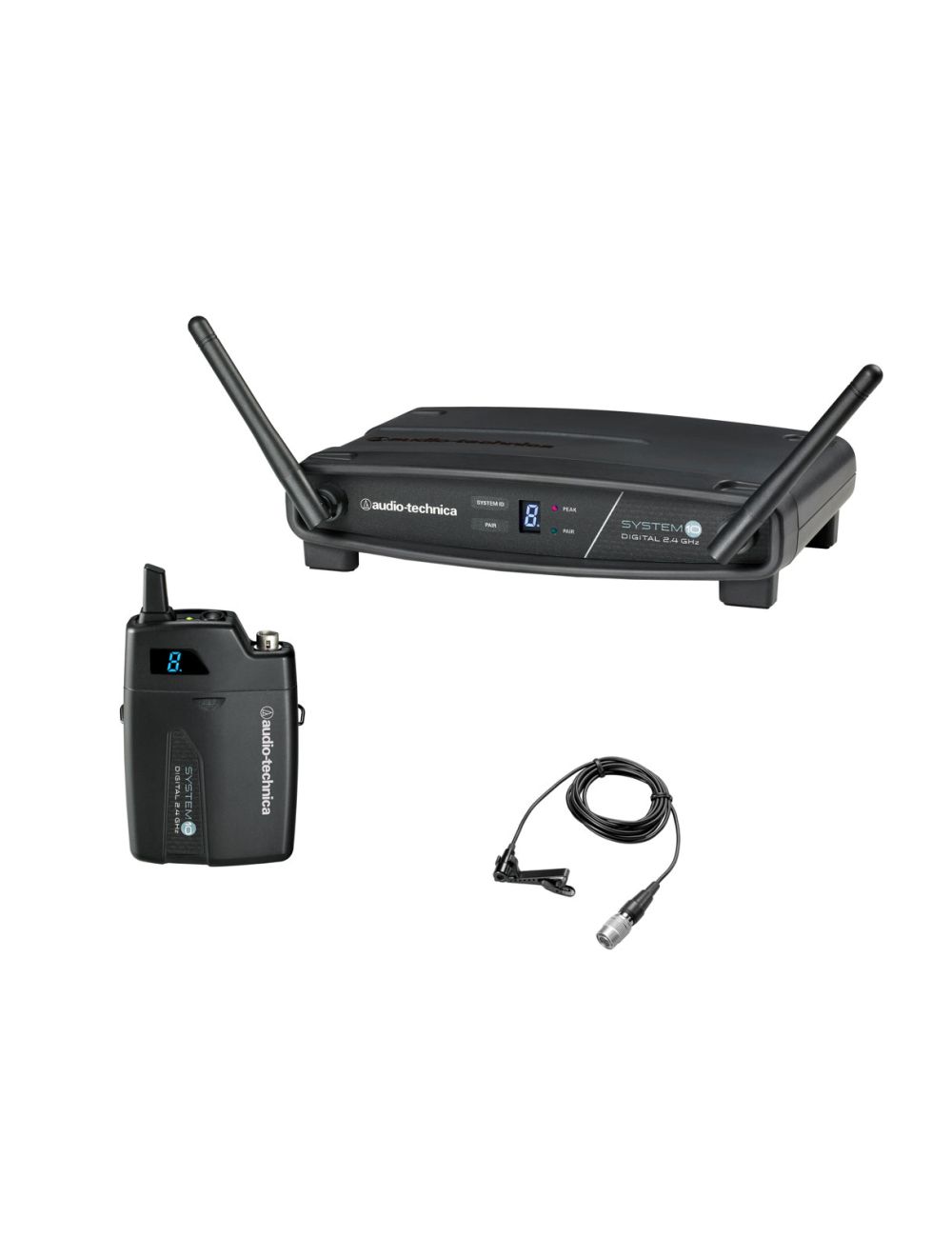

ATW-R1100 receiver and ATW-T1001 UniPak transmitter with MT830cW omnidirectional lavalier microphone

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each

 Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

Terminated with locking 4-pin connector for A-T UniPak body-pack wireless transmitters. 55" (1.4 m) cable. Includes windscreen and clothing clip.

Features

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • 2.4 GHz range – completely free from TV interference
  • Three levels of diversity assurance: frequency, time, & space
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and set-up
  • State-of-the-art digital receiver for reliable performance
  • Balanced XLR and unbalanced 1/4” output jacks with level control

OVERALL SYSTEM SPECIFICATIONS



  • Operating Frequencies : 2.4 GHz ISM band
  • Dynamic Range : 109 dB (A-weighted), typical
  • Total Harmonic Distortion : 0.05% typical
  • Operating Range : 30 m (100') typical,  Open range environment with no interfering signals
  • Operating Temperature Range : 0° C to +40° C (32° F to 104° F), Battery performance may be reduced at very low temperatures
  • Frequency Response : 20 Hz to 20 kHz, Depending on microphone type



RECEIVER SPECIFICATIONS



  • Receiving System : Diversity (frequency/time/space)
  • Maximum Output Level : XLR, balanced: 0 dBV, 1/4" (6.3 mm), unbalanced: +6 dBV
  • Power Supply : 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
  • Dimensions : 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
  • Net Weight : 290 grams (10.2 oz)
  • Accessory Included : Power supply





BODY-PACK TRANSMITTER SPECIFICATIONS



  • RF Power Output : 10 mW
  • Spurious Emissions : Following federal and national regulations
  • Input Connections : Four-pin Locking Connector , Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
  • Batteries : Two 1.5V AA  not included
  • Battery Life : 7 hours (alkaline), Depending on battery type and use pattern
  • Dimensions : 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
  • Net Weight : 100 grams (3.5 oz) , without batteries



Omnidirectional Condenser Lavalier Microphone

  • Element: Condenser
  • Polar Pattern : Omnidirectional
  • Cable : 55" (1.4 m), terminated for use with Audio-Technica UniPak body-pack transmitters
  • Accessories Furnished: Clothing clip; press-on windscreens
SKU ATC-ATW1101L
Brand American DJ
Weight 0.6400
Dimensions (WxHxD) 7.48 x 1.82 x 5.06
