Audio-Technica ATW-1101/H

2.4GHz Wireless Headset

Brand New


Availability: In stock now

"Don't See The Deal You Want?" Request A Deal

  • Google Playstore
  • Apple store

Product Description for the Audio-Technica ATW-1101/H

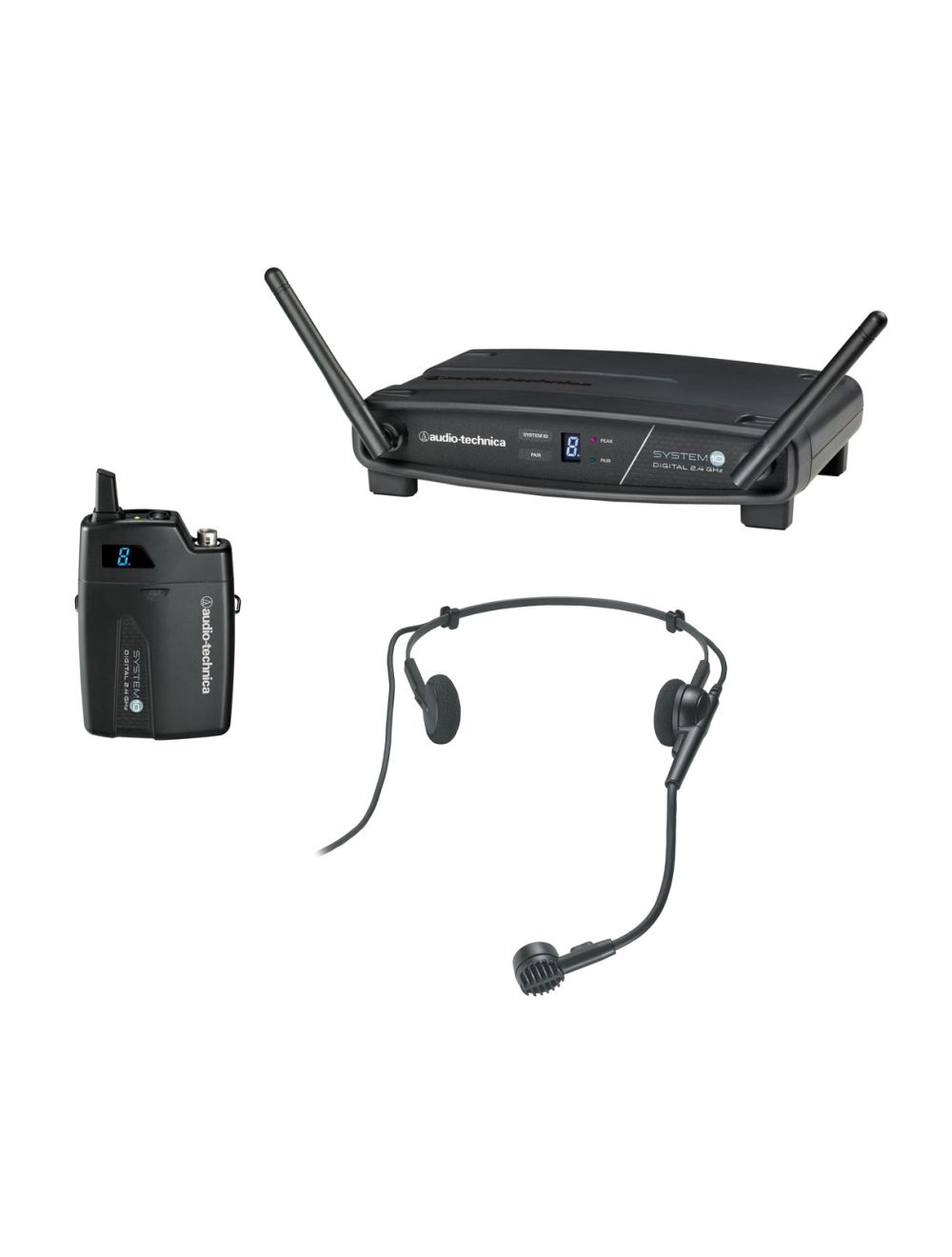

ATW-R1100 receiver and ATW-T1001 UniPak transmitter with PRO 8HEcW headworn microphone

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.


  • Operating Frequencies : 2.4 GHz ISM band
  • Dynamic Range : >109 dB (A-weighted), typical
  • Total Harmonic Distortion : <0.05% typical
  • Operating Range :30 m (100') typical,Open range environment with no interfering signals
  • Operating Temperature Range : 0° C to +40° C (32° F to 104° F), Battery performance may be reduced at very low temperatures
  • Frequency Response :20 Hz to 20 kHz, Depending on microphone type



  • Receiving System :Diversity (frequency/time/space)
  • Maximum Output Level : XLR, balanced: 0 dBV , 1/4" (6.3 mm), unbalanced: +6 dBV
  • Power Supply : 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
  • Dimensions : 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
  • Net Weight : 290 grams (10.2 oz)
  • Accessory Included : Power supply



  • RF Power Output : 10 mW
  • Spurious Emissions : Following federal and national regulations
  • Input Connections : Four-pin Locking Connector , Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
  • Batteries : Two 1.5V AA, not included
  • Battery Life : >7 hours (alkaline),Depending on battery type and use pattern
  • Dimensions : 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
  • Net Weight: 100 grams (3.5 oz) without batteries

PRO 8HEcW headworn microphone

  • These microphones’ small size allows them to be worn as a
  • lavalier, or hidden in loose clothing. For normal lavalier use, attach the
  • microphone about 6" (15 cm) below the user’s chin. Anticipate movements
  • that may cause the microphone to rub against or be covered by clothing
  • and position the microphone to avoid it.
Brand American DJ
Weight 0.6400
Dimensions (WxHxD) 7.48x 1.82x 5.06
